This functions similarly to a LightAttrib or ClipPlaneAttrib. More...

#include "occluderEffect.h"

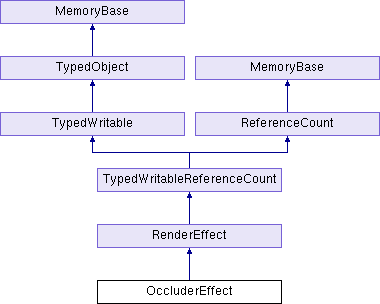

Inheritance diagram for OccluderEffect:

Public Member Functions
virtual int	complete_pointers (TypedWritable *plist, BamReader manager)
	Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More...

	CPT (RenderEffect) add_on_occluder(const NodePath &occluder) const

	CPT (RenderEffect) remove_on_occluder(const NodePath &occluder) const

virtual TypeHandle	force_init_type ()

int	get_num_on_occluders () const

NodePath	get_on_occluder (int n) const

virtual TypeHandle	get_type () const

bool	has_on_occluder (const NodePath &occluder) const
	Returns true if the indicated occluder is enabled by the effect, false otherwise. More...

bool	is_identity () const
	Returns true if this is an identity effect: it does not change the set of occluders in use. More...

virtual void	output (std::ostream &out) const

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

virtual void	write_datagram (BamWriter *manager, Datagram &dg)
	Writes the contents of this object to the datagram for shipping out to a Bam file. More...

Public Member Functions inherited from RenderEffect
	RenderEffect (const RenderEffect &copy)=delete

virtual	~RenderEffect ()
	The destructor is responsible for removing the RenderEffect from the global set if it is there. More...

virtual void	adjust_transform (CPT(TransformState) &net_transform, CPT(TransformState) &node_transform, const PandaNode *node) const

int	compare_to (const RenderEffect &other) const
	Provides an arbitrary ordering among all unique RenderEffects, so we can store the essentially different ones in a big set and throw away the rest. More...

virtual	CPT (TransformState) prepare_flatten_transform(const TransformState *net_transform) const

virtual void	cull_callback (CullTraverser *trav, CullTraverserData &data, CPT(TransformState) &node_transform, CPT(RenderState) &node_state) const

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

virtual bool	has_adjust_transform () const

virtual bool	has_cull_callback () const

RenderEffect &	operator= (const RenderEffect &copy)=delete

virtual bool	safe_to_combine () const

virtual bool	safe_to_transform () const
	Returns true if it is generally safe to transform this particular kind of RenderEffect by calling the xform() method, false otherwise. More...

virtual void	write (std::ostream &out, int indent_level) const

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Static Public Member Functions
static	CPT (RenderEffect) make()

static TypeHandle	get_class_type ()

static void	init_type ()

static void	register_with_read_factory ()

Static Public Member Functions inherited from RenderEffect
static TypedWritable *	change_this (TypedWritable old_ptr, BamReader manager)
	Called immediately after complete_pointers(), this gives the object a chance to adjust its own pointer if desired. More...

static TypeHandle	get_class_type ()

static int	get_num_effects ()

static void	init_type ()

static void	list_effects (std::ostream &out)
	Lists all of the RenderEffects in the cache to the output stream, one per line. More...

static bool	validate_effects ()
	Ensures that the cache is still stored in sorted order. More...

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
	get_num_on_occluders
	Returns the number of occluders that are enabled by the effectute. More...

	get_on_occluder
	Returns the nth occluder enabled by the effectute, sorted in render order. More...

Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Additional Inherited Members
Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

This functions similarly to a LightAttrib or ClipPlaneAttrib.

It indicates the set of occluders that modify the geometry at this level and below. Unlike a ClipPlaneAttrib, an OccluderEffect takes effect immediately when it is encountered during traversal, and thus can only add occluders; it may not remove them.

Definition at line 32 of file occluderEffect.h.

Member Function Documentation

◆ complete_pointers()

int OccluderEffect::complete_pointers	(	TypedWritable **	p_list,
		BamReader *	manager
	)

virtual

Receives an array of pointers, one for each time manager->read_pointer() was called in fillin().

Returns the number of pointers processed.

Reimplemented from TypedWritable.

Definition at line 164 of file occluderEffect.cxx.

◆ has_on_occluder()

bool OccluderEffect::has_on_occluder ( const NodePath & occluder ) const

inline

Returns true if the indicated occluder is enabled by the effect, false otherwise.

Definition at line 54 of file occluderEffect.I.

References ordered_vector< Key, Compare, Vector >::end().

◆ is_identity()

bool OccluderEffect::is_identity ( ) const

inline

Returns true if this is an identity effect: it does not change the set of occluders in use.

Definition at line 63 of file occluderEffect.I.

References ordered_vector< Key, Compare, Vector >::empty().

◆ require_fully_complete()

bool OccluderEffect::require_fully_complete ( ) const

virtual

Some objects require all of their nested pointers to have been completed before the objects themselves can be completed.

If this is the case, override this method to return true, and be careful with circular references (which would make the object unreadable from a bam file).

Reimplemented from TypedWritable.

Definition at line 207 of file occluderEffect.cxx.

◆ write_datagram()

void OccluderEffect::write_datagram	(	BamWriter *	manager,
		Datagram &	dg
	)

virtual

Writes the contents of this object to the datagram for shipping out to a Bam file.

Reimplemented from RenderEffect.

Definition at line 140 of file occluderEffect.cxx.

References Datagram::add_uint16(), ordered_vector< Key, Compare, Vector >::begin(), ordered_vector< Key, Compare, Vector >::end(), BamWriter::get_file_minor_ver(), get_num_on_occluders, RenderEffect::write_datagram(), and BamWriter::write_pointer().

Member Data Documentation

◆ get_num_on_occluders

int OccluderEffect::get_num_on_occluders

inline

Returns the number of occluders that are enabled by the effectute.

Definition at line 42 of file occluderEffect.h.

Referenced by write_datagram().

◆ get_on_occluder

NodePath OccluderEffect::get_on_occluder

inline

Returns the nth occluder enabled by the effectute, sorted in render order.

Definition at line 42 of file occluderEffect.h.

The documentation for this class was generated from the following files:

panda/src/pgraph/occluderEffect.h
panda/src/pgraph/occluderEffect.cxx
panda/src/pgraph/occluderEffect.I
