This represents one joint of the character's animation, containing an animating transform matrix. More...

#include "characterJoint.h"

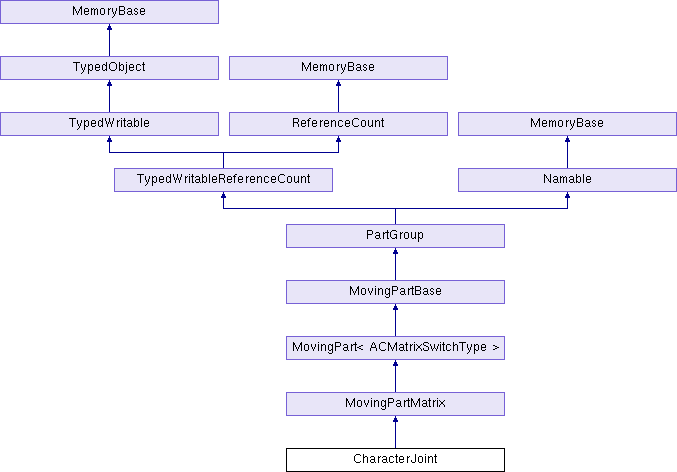

Inheritance diagram for CharacterJoint:

Public Member Functions
	CharacterJoint (Character character, PartBundle root, PartGroup *parent, const std::string &name, const LMatrix4 &default_value)

bool	add_local_transform (PandaNode *node)
	Adds the indicated node to the list of nodes that will be updated each frame with the joint's local transform from its parent. More...

bool	add_net_transform (PandaNode *node)
	Adds the indicated node to the list of nodes that will be updated each frame with the joint's net transform from the root. More...

void	clear_local_transforms ()
	Removes all nodes from the list of nodes that will be updated each frame with the joint's local transform from its parent. More...

void	clear_net_transforms ()
	Removes all nodes from the list of nodes that will be updated each frame with the joint's net transform from the root. More...

virtual int	complete_pointers (TypedWritable *p_list, BamReader manager)
	Takes in a vector of pointers to TypedWritable objects that correspond to all the requests for pointers that this object made to BamReader. More...

	CPT (TransformState) get_transform_state() const

virtual void	do_xform (const LMatrix4 &mat, const LMatrix4 &inv_mat)
	Called by PartBundle::xform(), this indicates the indicated transform is being applied to the root joint. More...

virtual TypeHandle	force_init_type ()

Character *	get_character () const

NodePathCollection	get_local_transforms ()
	Returns a list of the local transforms set for this node. More...

void	get_net_transform (LMatrix4 &transform) const

NodePathCollection	get_net_transforms ()
	Returns a list of the net transforms set for this node. More...

void	get_transform (LMatrix4 &transform) const
	Copies the joint's current transform into the indicated matrix. More...

const LMatrix4 &	get_transform () const
	Returns the transform matrix of the joint. More...

virtual TypeHandle	get_type () const

bool	has_local_transform (PandaNode *node) const
	Returns true if the node is on the list of nodes that will be updated each frame with the joint's local transform from its parent, false otherwise. More...

bool	has_net_transform (PandaNode *node) const
	Returns true if the node is on the list of nodes that will be updated each frame with the joint's net transform from the root, false otherwise. More...

virtual bool	is_character_joint () const
	Returns true if this part is a CharacterJoint, false otherwise. More...

virtual PartGroup *	make_copy () const
	Allocates and returns a new copy of the node. More...

	PT (PandaNode) _geom_node

bool	remove_local_transform (PandaNode *node)
	Removes the indicated node from the list of nodes that will be updated each frame with the joint's local transform from its parent. More...

bool	remove_net_transform (PandaNode *node)
	Removes the indicated node from the list of nodes that will be updated each frame with the joint's net transform from the root. More...

virtual bool	update_internals (PartBundle root, PartGroup parent, bool self_changed, bool parent_changed, Thread *current_thread)
	This is called by do_update() whenever the part or some ancestor has changed values. More...

virtual void	write_datagram (BamWriter *manager, Datagram &me)
	Function to write the important information in the particular object to a Datagram. More...

Public Member Functions inherited from MovingPartMatrix
	MovingPartMatrix (PartGroup *parent, const std::string &name, const LMatrix4 &default_value)

virtual bool	apply_control (PandaNode *node)
	Specifies a node to influence this particular joint so that it will always hold the node's transform. More...

virtual bool	apply_freeze_matrix (const LVecBase3 &pos, const LVecBase3 &hpr, const LVecBase3 &scale)
	Freezes this particular joint so that it will always hold the specified transform. More...

virtual void	get_blend_value (const PartBundle *root)
	Attempts to blend the various matrix values indicated, and sets the _value member to the resulting matrix. More...

virtual AnimChannelBase *	make_default_channel () const
	Creates and returns a new AnimChannel that is not part of any hierarchy, but that returns the default value associated with this part. More...

Public Member Functions inherited from MovingPart< ACMatrixSwitchType >
	MovingPart (PartGroup *parent, const std::string &name, const ValueType &default_value)

ValueType	get_default_value () const

ValueType	get_value () const

virtual TypeHandle	get_value_type () const
	Returns the TypeHandle associated with the ValueType we are concerned with. More...

virtual void	output_value (std::ostream &out) const
	Outputs a very brief description of the channel's current value. More...

Public Member Functions inherited from MovingPartBase
	MovingPartBase (PartGroup *parent, const std::string &name)

virtual bool	clear_forced_channel ()
	Undoes the effect of a previous call to apply_freeze() or apply_control(). More...

virtual bool	do_update (PartBundle root, const CycleData root_cdata, PartGroup parent, bool parent_changed, bool anim_changed, Thread current_thread)
	Recursively update this particular part and all of its descendents for the current frame. More...

AnimChannelBase *	get_bound (int n) const
	Returns the nth bound channel on this PartGroup. More...

virtual AnimChannelBase *	get_forced_channel () const
	Returns the AnimChannelBase that has been forced to this joint by a previous call to apply_freeze() or apply_control(), or NULL if no such channel has been applied. More...

int	get_max_bound () const
	Returns the number of channels that might be bound to this PartGroup. More...

virtual void	write (std::ostream &out, int indent_level) const
	Writes a brief description of the channel and all of its descendants. More...

virtual void	write_with_value (std::ostream &out, int indent_level) const
	Writes a brief description of the channel and all of its descendants, along with their values. More...

Public Member Functions inherited from PartGroup
	PartGroup (PartGroup *parent, const std::string &name)
	Creates the PartGroup, and adds it to the indicated parent. More...

bool	apply_freeze (const TransformState *transform)
	Freezes this particular joint so that it will always hold the specified transform. More...

virtual bool	apply_freeze_scalar (PN_stdfloat value)
	Freezes this particular joint so that it will always hold the specified transform. More...

bool	check_hierarchy (const AnimGroup anim, const PartGroup parent, int hierarchy_match_flags=0) const
	Walks the part hierarchy in tandem with the indicated anim hierarchy, and returns true if the hierarchies match, false otherwise. More...

PartGroup *	copy_subgraph () const
	Allocates and returns a new copy of this node and of all of its children. More...

PartGroup *	find_child (const std::string &name) const
	Returns the first descendant found with the indicated name, or NULL if no such descendant exists. More...

PartGroup *	get_child (int n) const

PartGroup *	get_child_named (const std::string &name) const
	Returns the first child found with the indicated name, or NULL if no such child exists. More...

int	get_num_children () const

void	sort_descendants ()
	Sorts the children nodes at each level of the hierarchy into alphabetical order. More...

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Public Member Functions inherited from Namable
	Namable (const std::string &initial_name="")

void	clear_name ()
	Resets the Namable's name to empty. More...

const std::string &	get_name () const

bool	has_name () const
	Returns true if the Namable has a nonempty name set, false if the name is empty. More...

void	output (std::ostream &out) const
	Outputs the Namable. More...

void	set_name (const std::string &name)

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

static TypedWritable *	make_CharacterJoint (const FactoryParams &params)
	Factory method to generate a CharacterJoint object. More...

static void	register_with_read_factory ()
	Factory method to generate a CharacterJoint object. More...

Static Public Member Functions inherited from MovingPartMatrix
static TypeHandle	get_class_type ()

static void	init_type ()

static TypedWritable *	make_MovingPartMatrix (const FactoryParams &params)
	Factory method to generate a MovingPartMatrix object. More...

static void	register_with_read_factory ()
	Factory method to generate a MovingPartMatrix object. More...

Static Public Member Functions inherited from MovingPart< ACMatrixSwitchType >
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from MovingPartBase
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from PartGroup
static TypeHandle	get_class_type ()

static void	init_type ()

static TypedWritable *	make_PartGroup (const FactoryParams &params)
	Factory method to generate a PartGroup object. More...

static void	register_with_read_factory ()
	Factory method to generate a PartGroup object. More...

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from Namable
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
LMatrix4	_initial_net_transform_inverse

LMatrix4	_net_transform

LMatrix4	_skinning_matrix

Public Attributes inherited from MovingPart< ACMatrixSwitchType >
ValueType	_default_value

ValueType	_value

Public Attributes inherited from PartGroup
	get_child
	Returns the nth child of the group. More...

	get_num_children
	Returns the number of child nodes of the group. More...

Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Public Attributes inherited from Namable
	get_name

	set_name

Friends
class	Character

class	CharacterJointBundle

class	JointVertexTransform

Additional Inherited Members
Public Types inherited from MovingPart< ACMatrixSwitchType >
typedef AnimChannel< ACMatrixSwitchType >	ChannelType

typedef ACMatrixSwitchType ::ValueType	ValueType

Public Types inherited from PartGroup
enum	HierarchyMatchFlags { HMF_ok_part_extra = 0x01, HMF_ok_anim_extra = 0x02, HMF_ok_wrong_root_name = 0x04 }

Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

This represents one joint of the character's animation, containing an animating transform matrix.

Definition at line 32 of file characterJoint.h.

Member Function Documentation

◆ add_local_transform()

bool CharacterJoint::add_local_transform ( PandaNode * node )

Adds the indicated node to the list of nodes that will be updated each frame with the joint's local transform from its parent.

Returns true if the node is successfully added, false if it had already been added.

The Character pointer should be the Character object that owns this joint; this will be used to create a CharacterJointEffect for this node. If it is NULL, no such effect will be created.

A CharacterJointEffect for this joint's Character will automatically be added to the specified node.

Definition at line 288 of file characterJoint.cxx.

References PandaNode::set_effect(), and PandaNode::set_transform.

◆ add_net_transform()

bool CharacterJoint::add_net_transform ( PandaNode * node )

Adds the indicated node to the list of nodes that will be updated each frame with the joint's net transform from the root.

Returns true if the node is successfully added, false if it had already been added.

A CharacterJointEffect for this joint's Character will automatically be added to the specified node.

Definition at line 196 of file characterJoint.cxx.

References PandaNode::set_effect(), and PandaNode::set_transform.

◆ clear_local_transforms()

void CharacterJoint::clear_local_transforms ( )

Removes all nodes from the list of nodes that will be updated each frame with the joint's local transform from its parent.

Definition at line 330 of file characterJoint.cxx.

References ordered_vector< Key, Compare, Vector >::begin(), and ordered_vector< Key, Compare, Vector >::end().

◆ clear_net_transforms()

void CharacterJoint::clear_net_transforms ( )

Removes all nodes from the list of nodes that will be updated each frame with the joint's net transform from the root.

Definition at line 238 of file characterJoint.cxx.

References ordered_vector< Key, Compare, Vector >::begin(), and ordered_vector< Key, Compare, Vector >::end().

◆ complete_pointers()

int CharacterJoint::complete_pointers	(	TypedWritable **	p_list,
		BamReader *	manager
	)

virtual

Takes in a vector of pointers to TypedWritable objects that correspond to all the requests for pointers that this object made to BamReader.

Reimplemented from MovingPartBase.

Definition at line 511 of file characterJoint.cxx.

◆ do_xform()

void CharacterJoint::do_xform	(	const LMatrix4 &	mat,
		const LMatrix4 &	inv_mat
	)

virtual

Called by PartBundle::xform(), this indicates the indicated transform is being applied to the root joint.

Reimplemented from PartGroup.

Definition at line 179 of file characterJoint.cxx.

◆ get_local_transforms()

NodePathCollection CharacterJoint::get_local_transforms ( )

Returns a list of the local transforms set for this node.

Note that this returns a list of NodePaths, even though the local transforms are actually a list of PandaNodes.

Definition at line 353 of file characterJoint.cxx.

References NodePathCollection::add_path(), NodePath::any_path(), ordered_vector< Key, Compare, Vector >::begin(), and ordered_vector< Key, Compare, Vector >::end().

◆ get_net_transforms()

NodePathCollection CharacterJoint::get_net_transforms ( )

Returns a list of the net transforms set for this node.

Note that this returns a list of NodePaths, even though the net transforms are actually a list of PandaNodes.

Definition at line 261 of file characterJoint.cxx.

References NodePathCollection::add_path(), NodePath::any_path(), ordered_vector< Key, Compare, Vector >::begin(), and ordered_vector< Key, Compare, Vector >::end().

◆ get_transform() [1/2]

void CharacterJoint::get_transform ( LMatrix4 & transform ) const

Copies the joint's current transform into the indicated matrix.

Definition at line 371 of file characterJoint.cxx.

◆ get_transform() [2/2]

const LMatrix4 & CharacterJoint::get_transform ( ) const

inline

Returns the transform matrix of the joint.

Definition at line 18 of file characterJoint.I.

◆ has_local_transform()

bool CharacterJoint::has_local_transform ( PandaNode * node ) const

Returns true if the node is on the list of nodes that will be updated each frame with the joint's local transform from its parent, false otherwise.

Definition at line 321 of file characterJoint.cxx.

References ordered_vector< Key, Compare, Vector >::count().

◆ has_net_transform()

bool CharacterJoint::has_net_transform ( PandaNode * node ) const

Returns true if the node is on the list of nodes that will be updated each frame with the joint's net transform from the root, false otherwise.

Definition at line 229 of file characterJoint.cxx.

References ordered_vector< Key, Compare, Vector >::count().

◆ is_character_joint()

bool CharacterJoint::is_character_joint ( ) const

virtual

Returns true if this part is a CharacterJoint, false otherwise.

This is a tiny optimization over is_of_type(CharacterType::get_class_type()).

Reimplemented from PartGroup.

Definition at line 86 of file characterJoint.cxx.

◆ make_CharacterJoint()

TypedWritable * CharacterJoint::make_CharacterJoint ( const FactoryParams & params )

static

Factory method to generate a CharacterJoint object.

Definition at line 538 of file characterJoint.cxx.

References parse_params().

Referenced by register_with_read_factory().

◆ make_copy()

PartGroup * CharacterJoint::make_copy ( ) const

virtual

Allocates and returns a new copy of the node.

Children are not copied, but see copy_subgraph().

Reimplemented from PartGroup.

Definition at line 95 of file characterJoint.cxx.

◆ register_with_read_factory()

void CharacterJoint::register_with_read_factory ( )

static

Factory method to generate a CharacterJoint object.

Definition at line 552 of file characterJoint.cxx.

References BamReader::get_factory(), make_CharacterJoint(), and Factory< Type >::register_factory().

Referenced by init_libchar().

◆ remove_local_transform()

bool CharacterJoint::remove_local_transform ( PandaNode * node )

Removes the indicated node from the list of nodes that will be updated each frame with the joint's local transform from its parent.

Returns true if the node is successfully removed, false if it was not on the list.

If the node has a CharacterJointEffect that matches this joint's Character, it will be cleared.

Definition at line 306 of file characterJoint.cxx.

◆ remove_net_transform()

bool CharacterJoint::remove_net_transform ( PandaNode * node )

Removes the indicated node from the list of nodes that will be updated each frame with the joint's net transform from the root.

Returns true if the node is successfully removed, false if it was not on the list.

If the node has a CharacterJointEffect that matches this joint's Character, it will be cleared.

Definition at line 214 of file characterJoint.cxx.

◆ update_internals()

bool CharacterJoint::update_internals	(	PartBundle *	root,
		PartGroup *	parent,
		bool	self_changed,
		bool	parent_changed,
		Thread *	current_thread
	)

virtual

This is called by do_update() whenever the part or some ancestor has changed values.

It is a hook for derived classes to update whatever cache they may have that depends on these.

The return value is true if the part has changed as a result of the update, or false otherwise.

In the case of a CharacterJoint, of course, it means to recompute the joint angles and associated transforms for this particular joint.

Reimplemented from MovingPartBase.

Definition at line 111 of file characterJoint.cxx.

◆ write_datagram()

void CharacterJoint::write_datagram	(	BamWriter *	manager,
		Datagram &	me
	)

virtual

Function to write the important information in the particular object to a Datagram.

Reimplemented from MovingPart< ACMatrixSwitchType >.

Definition at line 456 of file characterJoint.cxx.

References Datagram::add_uint16(), ordered_vector< Key, Compare, Vector >::begin(), ordered_vector< Key, Compare, Vector >::end(), ordered_vector< Key, Compare, Vector >::size(), MovingPart< ACMatrixSwitchType >::write_datagram(), and BamWriter::write_pointer().

The documentation for this class was generated from the following files:

panda/src/char/characterJoint.h
panda/src/char/characterJoint.cxx
panda/src/char/characterJoint.I

Public Member Functions

Static Public Member Functions

Public Attributes

Friends

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ add_local_transform()

◆ add_net_transform()

◆ clear_local_transforms()

◆ clear_net_transforms()

◆ complete_pointers()

◆ do_xform()

◆ get_local_transforms()

◆ get_net_transforms()

◆ get_transform() [1/2]

◆ get_transform() [2/2]

◆ has_local_transform()

◆ has_net_transform()

◆ is_character_joint()

◆ make_CharacterJoint()

◆ make_copy()

◆ register_with_read_factory()

◆ remove_local_transform()

◆ remove_net_transform()

◆ update_internals()

◆ write_datagram()
