A PolylightEffect can be used on a node to define a LightGroup for that node. More...
#include "polylightEffect.h"

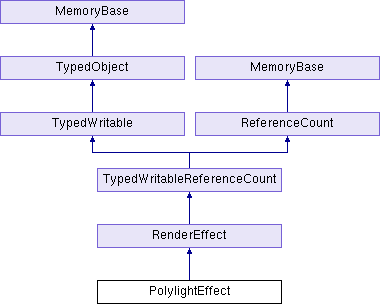

Inheritance diagram for PolylightEffect:
Public Types | |
| enum | ContribType { CT_proximal, CT_all } |
| typedef pvector< NodePath > | LightGroup |
Public Member Functions | |
| CPT (RenderEffect) add_light(const NodePath &newlight) const | |
| CPT (RenderEffect) remove_light(const NodePath &newlight) const | |
| CPT (RenderEffect) set_weight(PN_stdfloat w) const | |
| CPT (RenderEffect) set_contrib(ContribType c) const | |
| CPT (RenderEffect) set_effect_center(const LPoint3 &ec) const | |
| CPT (RenderAttrib) do_poly_light(const SceneSetup *scene | |
| virtual void | cull_callback (CullTraverser *trav, CullTraverserData &data, CPT(TransformState) &node_transform, CPT(RenderState) &node_state) const |
| If has_cull_callback() returns true, this function will be called during the cull traversal to perform any additional operations that should be performed at cull time. More... | |
| virtual TypeHandle | force_init_type () |
| ContribType | get_contrib () const |
| Returns CT_all or CT_proximal. More... | |
| LPoint3 | get_effect_center () const |
| Return the value of the _effect_center. More... | |
| virtual TypeHandle | get_type () const |
| PN_stdfloat | get_weight () const |
| Get the weight value. More... | |
| virtual bool | has_cull_callback () const |
| Should be overridden by derived classes to return true if cull_callback() has been defined. More... | |
| bool | has_light (const NodePath &light) const |
| virtual void | output (std::ostream &out) const |
 Public Member Functions inherited from RenderEffect | |
| RenderEffect (const RenderEffect ©)=delete | |
| virtual | ~RenderEffect () |
| The destructor is responsible for removing the RenderEffect from the global set if it is there. More... | |
| virtual void | adjust_transform (CPT(TransformState) &net_transform, CPT(TransformState) &node_transform, const PandaNode *node) const |
| int | compare_to (const RenderEffect &other) const |
| Provides an arbitrary ordering among all unique RenderEffects, so we can store the essentially different ones in a big set and throw away the rest. More... | |
| virtual | CPT (TransformState) prepare_flatten_transform(const TransformState *net_transform) const |
| virtual void | finalize (BamReader *manager) |
| Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More... | |
| virtual bool | has_adjust_transform () const |
| RenderEffect & | operator= (const RenderEffect ©)=delete |
| virtual bool | safe_to_combine () const |
| virtual bool | safe_to_transform () const |
| Returns true if it is generally safe to transform this particular kind of RenderEffect by calling the xform() method, false otherwise. More... | |
| virtual void | write (std::ostream &out, int indent_level) const |
| virtual void | write_datagram (BamWriter *manager, Datagram &dg) |
| Writes the contents of this object to the datagram for shipping out to a Bam file. More... | |
| Public Member Functions inherited from TypedWritableReferenceCount | |
| TypedWritableReferenceCount (const TypedWritableReferenceCount ©) | |
| virtual ReferenceCount * | as_reference_count () |
| Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More... | |
| void | operator= (const TypedWritableReferenceCount ©) |
| Public Member Functions inherited from TypedWritable | |
| TypedWritable (const TypedWritable ©) | |
| virtual int | complete_pointers (TypedWritable **p_list, BamReader *manager) |
| Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More... | |
| vector_uchar | encode_to_bam_stream () const |
| Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More... | |
| bool | encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const |
| Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More... | |
| UpdateSeq | get_bam_modified () const |
| Returns the current bam_modified counter. More... | |
| void | mark_bam_modified () |
| Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More... | |
| void | operator= (const TypedWritable ©) |
| virtual bool | require_fully_complete () const |
| Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More... | |
| virtual void | update_bam_nested (BamWriter *manager) |
| Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More... | |
| Public Member Functions inherited from TypedObject | |
| TypedObject (const TypedObject ©)=default | |
| TypedObject * | as_typed_object () |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| const TypedObject * | as_typed_object () const |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| int | get_best_parent_from_Set (const std::set< int > &) const |
| int | get_type_index () const |
| Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More... | |
| bool | is_exact_type (TypeHandle handle) const |
| Returns true if the current object is the indicated type exactly. More... | |
| bool | is_of_type (TypeHandle handle) const |
| Returns true if the current object is or derives from the indicated type. More... | |
| TypedObject & | operator= (const TypedObject ©)=default |
| Public Member Functions inherited from ReferenceCount | |
| int | get_ref_count () const |
| WeakReferenceList * | get_weak_list () const |
| Returns the WeakReferenceList associated with this ReferenceCount object. More... | |
| bool | has_weak_list () const |
| Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More... | |
| void | local_object () |
| This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More... | |
| void | ref () const |
| Explicitly increments the reference count. More... | |
| bool | ref_if_nonzero () const |
| Atomically increases the reference count of this object if it is not zero. More... | |
| bool | test_ref_count_integrity () const |
| Does some easy checks to make sure that the reference count isn't completely bogus. More... | |
| bool | test_ref_count_nonzero () const |
| Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More... | |
| virtual bool | unref () const |
| Explicitly decrements the reference count. More... | |
| WeakReferenceList * | weak_ref () |
| Adds the indicated PointerToVoid as a weak reference to this object. More... | |
| void | weak_unref () |
| Removes the indicated PointerToVoid as a weak reference to this object. More... | |
Static Public Member Functions | |
| static | CPT (RenderEffect) make() |
| static | CPT (RenderEffect) make(PN_stdfloat weight |
| static | CPT (RenderEffect) make(PN_stdfloat weight |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from RenderEffect | |
| static TypedWritable * | change_this (TypedWritable *old_ptr, BamReader *manager) |
| Called immediately after complete_pointers(), this gives the object a chance to adjust its own pointer if desired. More... | |
| static TypeHandle | get_class_type () |
| static int | get_num_effects () |
| static void | init_type () |
| static void | list_effects (std::ostream &out) |
| Lists all of the RenderEffects in the cache to the output stream, one per line. More... | |
| static bool | validate_effects () |
| Ensures that the cache is still stored in sorted order. More... | |
| Static Public Member Functions inherited from TypedWritableReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| static | PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data |
| Static Public Member Functions inherited from TypedWritable | |
| static bool | decode_raw_from_bam_stream (TypedWritable *&ptr, ReferenceCount *&ref_ptr, vector_uchar data, BamReader *reader=nullptr) |
| Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More... | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedObject | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| This function is declared non-inline to work around a compiler bug in g++ 2.96. More... | |
| Static Public Member Functions inherited from ReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
Public Attributes | |
| const CullTraverserData const TransformState *node_transform | const |
| static ContribType | contrib |
| const CullTraverserData * | data |
| static ContribType const LPoint3 & | effect_center |
| static ContribType const LPoint3 const LightGroup & | lights |
| Public Attributes inherited from TypedWritableReferenceCount | |
| static BamReader * | reader = nullptr) |
| Public Attributes inherited from TypedObject | |
| get_type | |
| Public Attributes inherited from ReferenceCount | |
| get_ref_count | |
| Returns the current reference count. More... | |
Additional Inherited Members | |
| Static Public Attributes inherited from TypedWritable | |
| static TypedWritable *const | Null = nullptr |
Detailed Description
A PolylightEffect can be used on a node to define a LightGroup for that node.
A LightGroup contains PolylightNodes which are essentially nodes that add color to the polygons of a model based on distance. PolylightNode is a cheap way to get lighting effects specially for night scenes
Definition at line 35 of file polylightEffect.h.
Member Function Documentation
◆ cull_callback()
|
virtual |
If has_cull_callback() returns true, this function will be called during the cull traversal to perform any additional operations that should be performed at cull time.
This may include additional manipulation of render state or additional visible/invisible decisions, or any other arbitrary operation.
At the time this function is called, the current node's transform and state have not yet been applied to the net_transform and net_state. This callback may modify the node_transform and node_state to apply an effective change to the render state at this level.
Reimplemented from RenderEffect.
Definition at line 90 of file polylightEffect.cxx.
◆ get_contrib()
|
inline |
Returns CT_all or CT_proximal.
Definition at line 46 of file polylightEffect.I.
◆ get_effect_center()
|
inline |
Return the value of the _effect_center.
Definition at line 54 of file polylightEffect.I.
◆ get_weight()
|
inline |
Get the weight value.
Definition at line 38 of file polylightEffect.I.
◆ has_cull_callback()
|
virtual |
Should be overridden by derived classes to return true if cull_callback() has been defined.
Otherwise, returns false to indicate cull_callback() does not need to be called for this effect during the cull traversal.
Reimplemented from RenderEffect.
Definition at line 73 of file polylightEffect.cxx.
The documentation for this class was generated from the following files:
- panda/src/pgraph/polylightEffect.h
- panda/src/pgraph/polylightEffect.cxx
- panda/src/pgraph/polylightEffect.I
