This is the base class for a single animatable piece that may be bound to one channel (or more, if blending is in effect). More...

#include "movingPartBase.h"

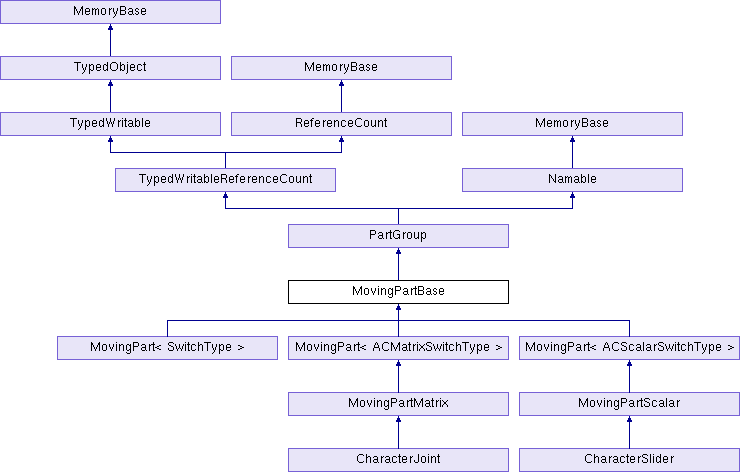

Inheritance diagram for MovingPartBase:

Public Member Functions
	MovingPartBase (PartGroup *parent, const std::string &name)

virtual bool	clear_forced_channel ()
	Undoes the effect of a previous call to apply_freeze() or apply_control(). More...

virtual int	complete_pointers (TypedWritable *plist, BamReader manager)
	Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More...

virtual bool	do_update (PartBundle root, const CycleData root_cdata, PartGroup parent, bool parent_changed, bool anim_changed, Thread current_thread)
	Recursively update this particular part and all of its descendents for the current frame. More...

virtual TypeHandle	force_init_type ()

virtual void	get_blend_value (const PartBundle *root)=0

AnimChannelBase *	get_bound (int n) const
	Returns the nth bound channel on this PartGroup. More...

virtual AnimChannelBase *	get_forced_channel () const
	Returns the AnimChannelBase that has been forced to this joint by a previous call to apply_freeze() or apply_control(), or NULL if no such channel has been applied. More...

int	get_max_bound () const
	Returns the number of channels that might be bound to this PartGroup. More...

virtual TypeHandle	get_type () const

virtual TypeHandle	get_value_type () const =0
	Returns the TypeHandle associated with the ValueType we are concerned with. More...

virtual AnimChannelBase *	make_default_channel () const =0

virtual void	output_value (std::ostream &out) const =0

virtual bool	update_internals (PartBundle root, PartGroup parent, bool self_changed, bool parent_changed, Thread *current_thread)
	This is called by do_update() whenever the part or some ancestor has changed values. More...

virtual void	write (std::ostream &out, int indent_level) const
	Writes a brief description of the channel and all of its descendants. More...

virtual void	write_datagram (BamWriter *manager, Datagram &dg)
	Writes the contents of this object to the datagram for shipping out to a Bam file. More...

virtual void	write_with_value (std::ostream &out, int indent_level) const
	Writes a brief description of the channel and all of its descendants, along with their values. More...

Public Member Functions inherited from PartGroup
	PartGroup (PartGroup *parent, const std::string &name)
	Creates the PartGroup, and adds it to the indicated parent. More...

virtual bool	apply_control (PandaNode *node)
	Specifies a node to influence this particular joint so that it will always hold the node's transform. More...

bool	apply_freeze (const TransformState *transform)
	Freezes this particular joint so that it will always hold the specified transform. More...

virtual bool	apply_freeze_matrix (const LVecBase3 &pos, const LVecBase3 &hpr, const LVecBase3 &scale)
	Freezes this particular joint so that it will always hold the specified transform. More...

virtual bool	apply_freeze_scalar (PN_stdfloat value)
	Freezes this particular joint so that it will always hold the specified transform. More...

bool	check_hierarchy (const AnimGroup anim, const PartGroup parent, int hierarchy_match_flags=0) const
	Walks the part hierarchy in tandem with the indicated anim hierarchy, and returns true if the hierarchies match, false otherwise. More...

PartGroup *	copy_subgraph () const
	Allocates and returns a new copy of this node and of all of its children. More...

virtual void	do_xform (const LMatrix4 &mat, const LMatrix4 &inv_mat)
	Called by PartBundle::xform(), this indicates the indicated transform is being applied to the root joint. More...

PartGroup *	find_child (const std::string &name) const
	Returns the first descendant found with the indicated name, or NULL if no such descendant exists. More...

PartGroup *	get_child (int n) const

PartGroup *	get_child_named (const std::string &name) const
	Returns the first child found with the indicated name, or NULL if no such child exists. More...

int	get_num_children () const

virtual bool	is_character_joint () const
	Returns true if this part is a CharacterJoint, false otherwise. More...

virtual PartGroup *	make_copy () const
	Allocates and returns a new copy of the node. More...

void	sort_descendants ()
	Sorts the children nodes at each level of the hierarchy into alphabetical order. More...

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Public Member Functions inherited from Namable
	Namable (const std::string &initial_name="")

void	clear_name ()
	Resets the Namable's name to empty. More...

const std::string &	get_name () const

bool	has_name () const
	Returns true if the Namable has a nonempty name set, false if the name is empty. More...

void	output (std::ostream &out) const
	Outputs the Namable. More...

void	set_name (const std::string &name)

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from PartGroup
static TypeHandle	get_class_type ()

static void	init_type ()

static TypedWritable *	make_PartGroup (const FactoryParams &params)
	Factory method to generate a PartGroup object. More...

static void	register_with_read_factory ()
	Factory method to generate a PartGroup object. More...

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from Namable
static TypeHandle	get_class_type ()

static void	init_type ()

Additional Inherited Members
Public Types inherited from PartGroup
enum	HierarchyMatchFlags { HMF_ok_part_extra = 0x01, HMF_ok_anim_extra = 0x02, HMF_ok_wrong_root_name = 0x04 }

Public Attributes inherited from PartGroup
	get_child
	Returns the nth child of the group. More...

	get_num_children
	Returns the number of child nodes of the group. More...

Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Public Attributes inherited from Namable
	get_name

	set_name

Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

This is the base class for a single animatable piece that may be bound to one channel (or more, if blending is in effect).

It corresponds to, for instance, a single joint or slider of a character.

MovingPartBase does not have a particular value type. See the derived template class, MovingPart, for this.

Definition at line 31 of file movingPartBase.h.

Member Function Documentation

◆ clear_forced_channel()

bool MovingPartBase::clear_forced_channel ( )

virtual

Undoes the effect of a previous call to apply_freeze() or apply_control().

Returns true if the joint was modified, false otherwise.

Reimplemented from PartGroup.

Definition at line 51 of file movingPartBase.cxx.

◆ complete_pointers()

int MovingPartBase::complete_pointers	(	TypedWritable **	p_list,
		BamReader *	manager
	)

virtual

Receives an array of pointers, one for each time manager->read_pointer() was called in fillin().

Returns the number of pointers processed.

This is the callback function that is made by the BamReader at some later point, after all of the required pointers have been filled in. It is necessary because there might be forward references in a bam file; when we call read_pointer() in fillin(), the object may not have been read from the file yet, so we do not have a pointer available at that time. Thus, instead of returning a pointer, read_pointer() simply reserves a later callback. This function provides that callback. The calling object is responsible for keeping track of the number of times it called read_pointer() and extracting the same number of pointers out of the supplied vector, and storing them appropriately within the object.

Reimplemented from PartGroup.

Reimplemented in CharacterJoint.

Definition at line 366 of file movingPartBase.cxx.

◆ do_update()

bool MovingPartBase::do_update	(	PartBundle *	root,
		const CycleData *	root_cdata,
		PartGroup *	parent,
		bool	parent_changed,
		bool	anim_changed,
		Thread *	current_thread
	)

virtual

Recursively update this particular part and all of its descendents for the current frame.

This is not really public and is not intended to be called directly; it is called from the top of the tree by PartBundle::update().

The return value is true if any part has changed, false otherwise.

Reimplemented from PartGroup.

Definition at line 111 of file movingPartBase.cxx.

References AnimControl::channel_has_changed(), AnimControl::get_channel_index(), and update_internals().

◆ get_bound()

AnimChannelBase * MovingPartBase::get_bound ( int n ) const

inline

Returns the nth bound channel on this PartGroup.

n can be determined by iterating from 0 to one less than get_max_bound(); or n might be AnimControl::get_channel_index().

This will return NULL if there is no channel bound on the indicated index. It is an error to call this if n is less than zero or greater than or equal to get_max_bound().

Definition at line 49 of file movingPartBase.I.

◆ get_forced_channel()

AnimChannelBase * MovingPartBase::get_forced_channel ( ) const

virtual

Returns the AnimChannelBase that has been forced to this joint by a previous call to apply_freeze() or apply_control(), or NULL if no such channel has been applied.

Reimplemented from PartGroup.

Definition at line 65 of file movingPartBase.cxx.

◆ get_max_bound()

int MovingPartBase::get_max_bound ( ) const

inline

Returns the number of channels that might be bound to this PartGroup.

This might not be the actual number of channels, since there might be holes in the list; it is one more than the index number of the highest bound channel. Thus, it is called get_max_bound() instead of get_num_bound().

Definition at line 35 of file movingPartBase.I.

◆ get_value_type()

virtual TypeHandle MovingPartBase::get_value_type ( ) const

pure virtual

Returns the TypeHandle associated with the ValueType we are concerned with.

This is provided to allow a bit of run-time checking that joints and channels are matching properly in type.

Reimplemented from PartGroup.

Implemented in MovingPart< SwitchType >, MovingPart< ACScalarSwitchType >, and MovingPart< ACMatrixSwitchType >.

Referenced by write(), and write_with_value().

◆ update_internals()

bool MovingPartBase::update_internals	(	PartBundle *	root,
		PartGroup *	parent,
		bool	self_changed,
		bool	parent_changed,
		Thread *	current_thread
	)

virtual

This is called by do_update() whenever the part or some ancestor has changed values.

It is a hook for derived classes to update whatever cache they may have that depends on these.

The return value is true if the part has changed as a result of the update, or false otherwise.

Reimplemented in CharacterJoint, and CharacterSlider.

Definition at line 180 of file movingPartBase.cxx.

Referenced by do_update().

◆ write()

void MovingPartBase::write	(	std::ostream &	out,
		int	indent_level
	)		const

virtual

Writes a brief description of the channel and all of its descendants.

Reimplemented from PartGroup.

Definition at line 73 of file movingPartBase.cxx.

References get_value_type(), and indent().

◆ write_datagram()

void MovingPartBase::write_datagram	(	BamWriter *	manager,
		Datagram &	dg
	)

virtual

Writes the contents of this object to the datagram for shipping out to a Bam file.

Reimplemented from PartGroup.

Reimplemented in CharacterJoint, MovingPart< SwitchType >, MovingPart< ACScalarSwitchType >, and MovingPart< ACMatrixSwitchType >.

Definition at line 344 of file movingPartBase.cxx.

References PartGroup::write_datagram(), and BamWriter::write_pointer().

Referenced by MovingPart< ACMatrixSwitchType >::write_datagram().

◆ write_with_value()

void MovingPartBase::write_with_value	(	std::ostream &	out,
		int	indent_level
	)		const

virtual

Writes a brief description of the channel and all of its descendants, along with their values.

Reimplemented from PartGroup.

Definition at line 89 of file movingPartBase.cxx.

References get_value_type(), and indent().

The documentation for this class was generated from the following files:

panda/src/chan/movingPartBase.h
panda/src/chan/movingPartBase.cxx
panda/src/chan/movingPartBase.I

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ clear_forced_channel()

◆ complete_pointers()

◆ do_update()

◆ get_bound()

◆ get_forced_channel()

◆ get_max_bound()

◆ get_value_type()

◆ update_internals()

◆ write()

◆ write_datagram()

◆ write_with_value()
