A node that holds Geom objects, renderable pieces of geometry. More...

#include "geomNode.h"

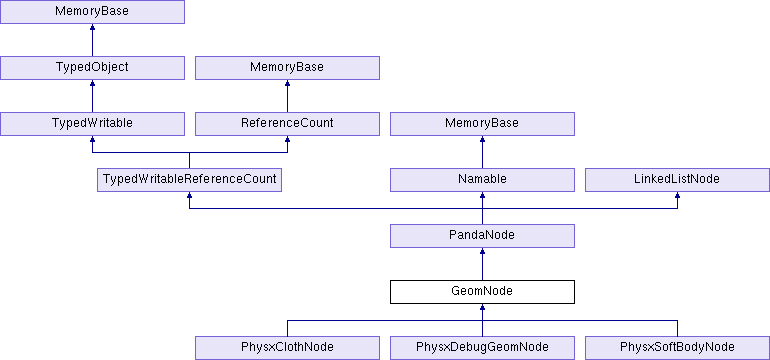

Inheritance diagram for GeomNode:

Classes
class	BamAuxData

class	GeomEntry

class	Geoms

Public Types
typedef CopyOnWriteObj< pvector< GeomEntry > >	GeomList

Public Types inherited from PandaNode
enum	FancyBits { FB_transform = 0x0001, FB_state = 0x0002, FB_effects = 0x0004, FB_tag = 0x0010, FB_draw_mask = 0x0020, FB_cull_callback = 0x0040 }

typedef bool	SceneRootFunc(const PandaNode *)

enum	UnexpectedChange { UC_parents = 0x001, UC_children = 0x002, UC_transform = 0x004, UC_state = 0x008, UC_draw_mask = 0x010 }

Public Member Functions
	GeomNode (const std::string &name)

virtual void	add_for_draw (CullTraverser *trav, CullTraverserData &data)
	Adds the node's contents to the CullResult we are building up during the cull traversal, so that it will be drawn at render time. More...

void	add_geom (Geom geom, const RenderState state=RenderState::make_empty())
	Adds a new Geom to the node. More...

void	add_geoms_from (const GeomNode *other)
	Copies the Geoms (and their associated RenderStates) from the indicated GeomNode into this one. More...

virtual void	apply_attribs_to_vertices (const AccumulatedAttribs &attribs, int attrib_types, GeomTransformer &transformer)
	Applies whatever attributes are specified in the AccumulatedAttribs object (and by the attrib_types bitmask) to the vertices on this node, if appropriate. More...

bool	check_valid () const
	Verifies that the each Geom within the GeomNode reference vertices that actually exist within its GeomVertexData. More...

virtual PandaNode *	combine_with (PandaNode *other)
	Collapses this node with the other node, if possible, and returns a pointer to the combined node, or NULL if the two nodes cannot safely be combined. More...

virtual	CPT (TransformState) calc_tight_bounds(LPoint3 &min_point

	CPT (Geom) get_geom(int n) const

void	decompose ()
	Calls decompose() on each Geom with the GeomNode. More...

void	do_premunge (GraphicsStateGuardianBase gsg, const RenderState node_state, GeomTransformer &transformer)
	Uses the indicated GSG to premunge the Geoms in this node to optimize them for eventual rendering. More...

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

virtual TypeHandle	force_init_type ()

const RenderState *	get_geom_state (int n) const

Geoms	get_geoms (Thread *current_thread=Thread::get_current_thread()) const
	Returns an object that can be used to walk through the list of geoms of the node. More...

virtual CollideMask	get_legal_collide_mask () const
	Returns the subset of CollideMask bits that may be set for this particular type of PandaNode. More...

int	get_num_geoms () const

bool	get_preserved () const
	Returns the "preserved" flag. More...

virtual TypeHandle	get_type () const

virtual bool	is_geom_node () const
	A simple downcast check. More...

virtual bool	is_renderable () const
	Returns true if there is some value to visiting this particular node during the cull traversal for any camera, false otherwise. More...

virtual PandaNode *	make_copy () const
	Returns a newly-allocated PandaNode that is a shallow copy of this one. More...

virtual void	output (std::ostream &out) const

	PT (Geom) modify_geom(int n)

virtual void	r_prepare_scene (GraphicsStateGuardianBase gsg, const RenderState node_state, GeomTransformer &transformer, Thread *current_thread)
	The recursive implementation of prepare_scene(). More...

void	remove_all_geoms ()
	Removes all the geoms from the node at once. More...

void	remove_geom (int n)
	Removes the nth geom from the node. More...

virtual bool	safe_to_combine () const
	Returns true if it is generally safe to combine this particular kind of PandaNode with other kinds of PandaNodes of compatible type, adding children or whatever. More...

virtual bool	safe_to_flatten () const
	Returns true if it is generally safe to flatten out this particular kind of PandaNode by duplicating instances (by calling dupe_for_flatten()), false otherwise (for instance, a Camera cannot be safely flattened, because the Camera pointer itself is meaningful). More...

void	set_geom (int n, Geom *geom)
	Replaces the nth Geom of the node with a new pointer. More...

void	set_geom_state (int n, const RenderState *state)
	Changes the RenderState associated with the nth geom of the node. More...

void	set_preserved (bool value)
	Sets the "preserved" flag. More...

void	unify (int max_indices, bool preserve_order)
	Attempts to unify all of the Geoms contained within this node into a single Geom, or at least as few Geoms as possible. More...

virtual void	write_datagram (BamWriter *manager, Datagram &dg)
	Writes the contents of this object to the datagram for shipping out to a Bam file. More...

void	write_geoms (std::ostream &out, int indent_level) const
	Writes a short description of all the Geoms in the node. More...

void	write_verbose (std::ostream &out, int indent_level) const
	Writes a detailed description of all the Geoms in the node. More...

virtual void	xform (const LMatrix4 &mat)
	Transforms the contents of this node by the indicated matrix, if it means anything to do so. More...

Public Member Functions inherited from PandaNode
	PandaNode (const std::string &name)

void	add_child (PandaNode child_node, int sort=0, Thread current_thread=Thread::get_current_thread())

void	add_stashed (PandaNode child_node, int sort=0, Thread current_thread=Thread::get_current_thread())
	Adds a new child to the node, directly as a stashed child. More...

void	adjust_draw_mask (DrawMask show_mask, DrawMask hide_mask, DrawMask clear_mask)
	Adjusts the hide/show bits of this particular node. More...

virtual Light *	as_light ()
	Cross-casts the node to a Light pointer, if it is one of the four kinds of Light nodes, or returns NULL if it is not. More...

void	clear_attrib (TypeHandle type)

void	clear_attrib (int slot)
	Removes the render attribute of the given type from this node. More...

void	clear_bounds ()
	Reverses the effect of a previous call to set_bounds(), and allows the node's bounding volume to be automatically computed once more based on the contents of the node. More...

void	clear_effect (TypeHandle type)
	Removes the render effect of the given type from this node. More...

void	clear_effects (Thread *current_thread=Thread::get_current_thread())

void	clear_state (Thread *current_thread=Thread::get_current_thread())

void	clear_tag (const std::string &key, Thread *current_thread=Thread::get_current_thread())

void	clear_transform (Thread *current_thread=Thread::get_current_thread())

void	clear_unexpected_change (unsigned int flags)
	Sets one or more of the PandaNode::UnexpectedChange bits off, indicating that the corresponding property may once again change on this node. More...

int	compare_tags (const PandaNode *other) const
	Returns a number less than 0, 0, or greater than 0, to indicate the similarity of tags between this node and the other one. More...

void	copy_all_properties (PandaNode *other)
	Copies the TransformState, RenderState, RenderEffects, tags, Python tags, and the show/hide state from the other node onto this one. More...

void	copy_children (PandaNode other, Thread current_thread=Thread::get_current_thread())
	Makes another instance of all the children of the other node, copying them to this node. More...

void	copy_tags (PandaNode *other)
	Copies all of the tags stored on the other node onto this node. More...

int	count_num_descendants () const

	CPT (RenderAttrib) get_attrib(TypeHandle type) const

	CPT (RenderAttrib) get_attrib(int slot) const

	CPT (RenderEffect) get_effect(TypeHandle type) const

	CPT (RenderState) get_state(Thread *current_thread

	CPT (RenderEffects) get_effects(Thread *current_thread

	CPT (TransformState) get_transform(Thread *current_thread

	CPT (TransformState) get_prev_transform(Thread *current_thread

	CPT (RenderAttrib) get_off_clip_planes(Thread *current_thread

	CPT (BoundingVolume) get_bounds(Thread *current_thread

	CPT (BoundingVolume) get_bounds(UpdateSeq &seq

	CPT (BoundingVolume) get_internal_bounds(Thread *current_thread

virtual bool	cull_callback (CullTraverser *trav, CullTraverserData &data)

virtual PandaNode *	dupe_for_flatten () const
	This is similar to make_copy(), but it makes a copy for the specific purpose of flatten. More...

int	find_child (PandaNode node, Thread current_thread=Thread::get_current_thread()) const
	Returns the index of the indicated child node, if it is a child, or -1 if it is not. More...

int	find_parent (PandaNode node, Thread current_thread=Thread::get_current_thread()) const
	Returns the index of the indicated parent node, if it is a parent, or -1 if it is not. More...

int	find_stashed (PandaNode node, Thread current_thread=Thread::get_current_thread()) const
	Returns the index of the indicated stashed node, if it is a stashed child, or -1 if it is not. More...

BoundingVolume::BoundsType	get_bounds_type () const

PandaNode *	get_child (int n, Thread *current_thread=Thread::get_current_thread()) const

int	get_child_sort (int n, Thread *current_thread=Thread::get_current_thread()) const
	Returns the sort index of the nth child node of this node (that is, the number that was passed to add_child()). More...

Children	get_children (Thread *current_thread=Thread::get_current_thread()) const

DrawMask	get_draw_control_mask () const

DrawMask	get_draw_show_mask () const

int	get_fancy_bits (Thread *current_thread=Thread::get_current_thread()) const
	Returns the union of all of the enum FancyBits values corresponding to the various "fancy" attributes that are set on the node. More...

virtual int	get_first_visible_child () const
	Returns the index number of the first visible child of this node, or a number >= get_num_children() if there are no visible children of this node. More...

int	get_internal_vertices (Thread *current_thread=Thread::get_current_thread()) const

CollideMask	get_into_collide_mask () const

int	get_nested_vertices (Thread *current_thread=Thread::get_current_thread()) const

CollideMask	get_net_collide_mask (Thread *current_thread=Thread::get_current_thread()) const
	Returns the union of all into_collide_mask() values set at CollisionNodes at this level and below. More...

DrawMask	get_net_draw_control_mask () const
	Returns the set of bits in get_net_draw_show_mask() that have been explicitly set via adjust_draw_mask(), rather than implicitly inherited. More...

DrawMask	get_net_draw_show_mask () const
	Returns the union of all draw_show_mask values–of renderable nodes only– at this level and below. More...

virtual int	get_next_visible_child (int n) const
	Returns the index number of the next visible child of this node following the indicated child, or a number >= get_num_children() if there are no more visible children of this node. More...

int	get_num_children (Thread *current_thread=Thread::get_current_thread()) const

int	get_num_parents (Thread *current_thread=Thread::get_current_thread()) const

int	get_num_stashed (Thread *current_thread=Thread::get_current_thread()) const

size_t	get_num_tags () const

PandaNode *	get_parent (int n, Thread *current_thread=Thread::get_current_thread()) const

Parents	get_parents (Thread *current_thread=Thread::get_current_thread()) const

PandaNode *	get_stashed (int n, Thread *current_thread=Thread::get_current_thread()) const

Stashed	get_stashed (Thread *current_thread=Thread::get_current_thread()) const

int	get_stashed_sort (int n, Thread *current_thread=Thread::get_current_thread()) const
	Returns the sort index of the nth stashed node of this node (that is, the number that was passed to add_child()). More...

std::string	get_tag (const std::string &key, Thread *current_thread=Thread::get_current_thread()) const

std::string	get_tag_key (size_t i) const

void	get_tag_keys (vector_string &keys) const
	Fills the given vector up with the list of tags on this PandaNode. More...

unsigned int	get_unexpected_change (unsigned int flags) const
	Returns nonzero if any of the bits in the input parameter are set on this node, or zero if none of them are set. More...

virtual int	get_unsafe_to_apply_attribs () const
	Returns the union of all attributes from SceneGraphReducer::AttribTypes that may not safely be applied to the vertices of this node. More...

virtual int	get_visible_child () const
	Returns the index number of the currently visible child of this node. More...

bool	has_attrib (TypeHandle type) const

bool	has_attrib (int slot) const

bool	has_dirty_prev_transform () const

bool	has_effect (TypeHandle type) const

virtual bool	has_selective_visibility () const
	Should be overridden by derived classes to return true if this kind of node has some restrictions on the set of children that should be rendered. More...

virtual bool	has_single_child_visibility () const
	Should be overridden by derived classes to return true if this kind of node has the special property that just one of its children is visible at any given time, and furthermore that the particular visible child can be determined without reference to any external information (such as a camera). More...

bool	has_tag (const std::string &key, Thread *current_thread=Thread::get_current_thread()) const

bool	has_tags () const

virtual bool	is_ambient_light () const
	Returns true if this is an AmbientLight, false if it is not a light, or it is some other kind of light. More...

bool	is_bounds_stale () const

virtual bool	is_collision_node () const
	A simple downcast check. More...

bool	is_final (Thread *current_thread=Thread::get_current_thread()) const

virtual bool	is_lod_node () const
	A simple downcast check. More...

bool	is_overall_hidden () const

bool	is_scene_root () const
	Returns true if this particular node is known to be the render root of some active DisplayRegion associated with the global GraphicsEngine, false otherwise. More...

bool	is_under_scene_root () const
	Returns true if this particular node is in a live scene graph: that is, it is a child or descendent of a node that is itself a scene root. More...

void	list_tags (std::ostream &out, const std::string &separator="\n") const
	Writes a list of all the tag keys assigned to the node to the indicated stream. More...

void	ls (std::ostream &out, int indent_level) const

void	mark_bounds_stale (Thread *current_thread=Thread::get_current_thread()) const

void	mark_internal_bounds_stale (Thread *current_thread=Thread::get_current_thread())

void	prepare_scene (GraphicsStateGuardianBase gsg, const RenderState node_state)

virtual bool	preserve_name () const
	Returns true if the node's name has extrinsic meaning and must be preserved across a flatten operation, false otherwise. More...

	PT (PandaNode) copy_subgraph(Thread *current_thread

void	remove_all_children (Thread *current_thread=Thread::get_current_thread())
	Removes all the children from the node at once, including stashed children. More...

void	remove_child (int child_index, Thread *current_thread=Thread::get_current_thread())
	Removes the nth child from the node. More...

bool	remove_child (PandaNode child_node, Thread current_thread=Thread::get_current_thread())
	Removes the indicated child from the node. More...

void	remove_stashed (int child_index, Thread *current_thread=Thread::get_current_thread())
	Removes the nth stashed child from the node. More...

bool	replace_child (PandaNode orig_child, PandaNode new_child, Thread *current_thread=Thread::get_current_thread())
	Searches for the orig_child node in the node's list of children, and replaces it with the new_child instead. More...

void	replace_node (PandaNode *other)
	Inserts this node into the scene graph in place of the other one, and removes the other node. More...

void	reset_prev_transform (Thread *current_thread=Thread::get_current_thread())
	Resets the transform that represents this node's "previous" position to the same as the current transform. More...

virtual bool	safe_to_combine_children () const
	Returns true if it is generally safe to combine the children of this PandaNode with each other. More...

virtual bool	safe_to_flatten_below () const
	Returns true if a flatten operation may safely continue past this node, or false if nodes below this node may not be molested. More...

virtual bool	safe_to_modify_transform () const
	Returns true if it is safe to automatically adjust the transform on this kind of node. More...

virtual bool	safe_to_transform () const
	Returns true if it is generally safe to transform this particular kind of PandaNode by calling the xform() method, false otherwise. More...

void	set_attrib (const RenderAttrib *attrib, int override=0)
	Adds the indicated render attribute to the scene graph on this node. More...

void	set_bound (const BoundingVolume *volume)
	Deprecated. More...

void	set_bounds (const BoundingVolume *volume)
	Resets the bounding volume so that it is the indicated volume. More...

void	set_bounds_type (BoundingVolume::BoundsType bounds_type)
	Specifies the desired type of bounding volume that will be created for this node. More...

void	set_effect (const RenderEffect *effect)
	Adds the indicated render effect to the scene graph on this node. More...

void	set_effects (const RenderEffects effects, Thread current_thread=Thread::get_current_thread())

void	set_final (bool flag)

void	set_into_collide_mask (CollideMask mask)

void	set_overall_hidden (bool overall_hidden)

void	set_prev_transform (const TransformState transform, Thread current_thread=Thread::get_current_thread())
	Sets the transform that represents this node's "previous" position, one frame ago, for the purposes of detecting motion for accurate collision calculations. More...

void	set_state (const RenderState state, Thread current_thread=Thread::get_current_thread())

void	set_tag (const std::string &key, const std::string &value, Thread *current_thread=Thread::get_current_thread())

void	set_transform (const TransformState transform, Thread current_thread=Thread::get_current_thread())

void	set_unexpected_change (unsigned int flags)
	Sets one or more of the PandaNode::UnexpectedChange bits on, indicating that the corresponding property should not change again on this node. More...

bool	stash_child (PandaNode child_node, Thread current_thread=Thread::get_current_thread())
	Stashes the indicated child node. More...

void	stash_child (int child_index, Thread *current_thread=Thread::get_current_thread())
	Stashes the indicated child node. More...

void	steal_children (PandaNode other, Thread current_thread=Thread::get_current_thread())
	Moves all the children from the other node onto this node. More...

bool	unstash_child (PandaNode child_node, Thread current_thread=Thread::get_current_thread())
	Returns the indicated stashed node to normal child status. More...

void	unstash_child (int stashed_index, Thread *current_thread=Thread::get_current_thread())
	Returns the indicated stashed node to normal child status. More...

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

virtual void	write (std::ostream &out, int indent_level) const

void	write_recorder (BamWriter *manager, Datagram &dg)
	This method is provided for the benefit of classes (like MouseRecorder) that inherit from PandaMode and also RecorderBase. More...

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

virtual int	complete_pointers (TypedWritable *p_list, BamReader manager)
	Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More...

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Public Member Functions inherited from Namable
	Namable (const std::string &initial_name="")

void	clear_name ()
	Resets the Namable's name to empty. More...

const std::string &	get_name () const

bool	has_name () const
	Returns true if the Namable has a nonempty name set, false if the name is empty. More...

void	output (std::ostream &out) const
	Outputs the Namable. More...

void	set_name (const std::string &name)

Static Public Member Functions
static TypeHandle	get_class_type ()

static CollideMask	get_default_collide_mask ()

static void	init_type ()

static void	register_with_read_factory ()
	Tells the BamReader how to create objects of type GeomNode. More...

Static Public Member Functions inherited from PandaNode
static DrawMask	get_all_camera_mask ()

static TypeHandle	get_class_type ()

static DrawMask	get_overall_bit ()

static void	init_type ()

static	PT (PandaNode) decode_from_bam_stream(vector_uchar data

static void	register_with_read_factory ()
	Tells the BamReader how to create objects of type PandaNode. More...

static void	reset_all_prev_transform (Thread *current_thread=Thread::get_current_thread())
	Visits all nodes in the world with the _dirty_prev_transform flag–that is, all nodes whose _prev_transform is different from the _transform in pipeline stage 0–and resets the _prev_transform to be the same as _transform. More...

static void	set_scene_root_func (SceneRootFunc *func)
	This is used by the GraphicsEngine to hook in a pointer to the scene_root_func(), the function to determine whether the node is an active scene root. More...

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from Namable
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
virtual LPoint3 bool const TransformState Thread *current_thread	const

virtual LPoint3 bool &	found_any

	get_default_collide_mask
	Returns the default into_collide_mask assigned to new GeomNodes. More...

	get_geom

	get_geom_state
	Returns the RenderState associated with the nth geom of the node. More...

	get_num_geoms
	Returns the number of geoms in the node. More...

virtual LPoint3 &	max_point

	modify_geom

virtual LPoint3 bool const TransformState *	transform

Public Attributes inherited from PandaNode
	clear_tag
	Removes the value defined for this key on this particular node. More...

virtual LPoint3 bool const TransformState Thread *	current_thread = Thread::get_current_thread()) const

Thread *	current_thread = Thread::get_current_thread()) const

virtual LPoint3 bool &	found_any

	get_all_camera_mask
	Returns a DrawMask that is appropriate for rendering to all cameras. More...

	get_bounds_type
	Returns the bounding volume type set with set_bounds_type(). More...

	get_child
	Returns the nth child node of this node. More...

	get_children
	Returns an object that can be used to walk through the list of children of the node. More...

	get_draw_control_mask
	Returns the set of bits in draw_show_mask that are considered meaningful. More...

	get_draw_show_mask
	Returns the hide/show bits of this particular node. More...

	get_effects

	get_internal_bounds

	get_internal_vertices

	get_into_collide_mask
	Returns the "into" collide mask for this node. More...

	get_legal_collide_mask
	Returns the subset of CollideMask bits that may be set for this particular type of PandaNode. More...

	get_nested_vertices

	get_num_children
	Returns the number of child nodes this node has. More...

	get_num_parents
	Returns the number of parent nodes this node has. More...

	get_num_stashed
	Returns the number of stashed nodes this node has. More...

	get_num_tags

	get_overall_bit

	get_parent
	Returns the nth parent node of this node. More...

	get_parents
	Returns an object that can be used to walk through the list of parents of the node, similar to get_children() and get_stashed(). More...

	get_prev_transform

	get_python_tags

	get_stashed
	Returns the nth stashed child of this node. More...

	get_state

	get_tag

	get_tag_key

	get_transform

	has_tag

	is_bounds_stale

	is_final
	Returns the current state of the "final" flag. More...

	is_overall_hidden
	Returns true if the node has been hidden to all cameras by clearing its overall bit. More...

virtual LPoint3 &	max_point

static BamReader *	reader = nullptr)

	set_effects
	Sets the complete RenderEffects that will be applied this node. More...

	set_final

	set_into_collide_mask
	Sets the "into" CollideMask. More...

	set_overall_hidden
	Sets or clears the hidden flag. More...

	set_state
	Sets the complete RenderState that will be applied to all nodes at this level and below. More...

	set_tag
	Associates a user-defined value with a user-defined key which is stored on the node. More...

	set_transform
	Sets the transform that will be applied to this node and below. More...

virtual LPoint3 bool const TransformState *	transform

Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Public Attributes inherited from Namable
	get_name

	set_name

Friends
class	GeomTransformer

Additional Inherited Members
Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

A node that holds Geom objects, renderable pieces of geometry.

This is the primary kind of leaf node in the scene graph; almost all visible objects will be contained in a GeomNode somewhere.

Definition at line 34 of file geomNode.h.

Member Function Documentation

◆ add_for_draw()

virtual void GeomNode::add_for_draw	(	CullTraverser *	trav,
		CullTraverserData &	data
	)

virtual

Adds the node's contents to the CullResult we are building up during the cull traversal, so that it will be drawn at render time.

For most nodes other than GeomNodes, this is a do-nothing operation.

Reimplemented from PandaNode.

◆ add_geom()

void GeomNode::add_geom	(	Geom *	geom,
		const RenderState *	state = `RenderState::make_empty()`
	)

Adds a new Geom to the node.

The geom is given the indicated state (which may be RenderState::make_empty(), to completely inherit its state from the scene graph).

Definition at line 584 of file geomNode.cxx.

◆ add_geoms_from()

void GeomNode::add_geoms_from ( const GeomNode * other )

Copies the Geoms (and their associated RenderStates) from the indicated GeomNode into this one.

Definition at line 605 of file geomNode.cxx.

◆ apply_attribs_to_vertices()

void GeomNode::apply_attribs_to_vertices	(	const AccumulatedAttribs &	attribs,
		int	attrib_types,
		GeomTransformer &	transformer
	)

virtual

Applies whatever attributes are specified in the AccumulatedAttribs object (and by the attrib_types bitmask) to the vertices on this node, if appropriate.

If this node uses geom arrays like a GeomNode, the supplied GeomTransformer may be used to unify shared arrays across multiple different nodes.

This is a generalization of xform().

Reimplemented from PandaNode.

Definition at line 101 of file geomNode.cxx.

References GeomTransformer::transform_vertices().

◆ check_valid()

bool GeomNode::check_valid ( ) const

Verifies that the each Geom within the GeomNode reference vertices that actually exist within its GeomVertexData.

Returns true if the GeomNode appears to be valid, false otherwise.

Definition at line 653 of file geomNode.cxx.

References get_num_geoms.

◆ combine_with()

PandaNode * GeomNode::combine_with ( PandaNode * other )

virtual

Collapses this node with the other node, if possible, and returns a pointer to the combined node, or NULL if the two nodes cannot safely be combined.

The return value may be this, other, or a new node altogether.

This function is called from GraphReducer::flatten(), and need not deal with children; its job is just to decide whether to collapse the two nodes and what the collapsed node should look like.

Reimplemented from PandaNode.

Definition at line 438 of file geomNode.cxx.

References TypedObject::is_exact_type().

◆ decompose()

void GeomNode::decompose ( )

Calls decompose() on each Geom with the GeomNode.

This decomposes higher- order primitive types, like triangle strips, into lower-order types like indexed triangles. Normally there is no reason to do this, but it can be useful as an early preprocessing step, to allow a later call to unify() to proceed more quickly.

See also SceneGraphReducer::decompose(), which is the normal way this is called.

Definition at line 676 of file geomNode.cxx.

◆ do_premunge()

void GeomNode::do_premunge	(	GraphicsStateGuardianBase *	gsg,
		const RenderState *	node_state,
		GeomTransformer &	transformer
	)

Uses the indicated GSG to premunge the Geoms in this node to optimize them for eventual rendering.

See SceneGraphReducer::premunge().

Definition at line 864 of file geomNode.cxx.

◆ finalize()

void GeomNode::finalize ( BamReader * manager )

virtual

Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed.

Reimplemented from TypedWritable.

Definition at line 996 of file geomNode.cxx.

References BamReader::get_file_minor_ver().

◆ get_geoms()

GeomNode::Geoms GeomNode::get_geoms ( Thread * current_thread = Thread::get_current_thread() ) const

inline

Returns an object that can be used to walk through the list of geoms of the node.

When you intend to visit multiple geoms, using this is slightly faster than calling get_geom() directly on the GeomNode, since this object avoids reopening the PipelineCycler each time.

This object also protects you from self-modifying loops (e.g. adding or removing geoms during traversal), since a virtual copy of the geoms is made ahead of time. The virtual copy is fast–it is a form of copy-on-write, so the list is not actually copied unless it is modified during the traversal.

Definition at line 177 of file geomNode.I.

◆ get_legal_collide_mask()

CollideMask GeomNode::get_legal_collide_mask ( ) const

virtual

Returns the subset of CollideMask bits that may be set for this particular type of PandaNode.

For most nodes, this is 0; it doesn't make sense to set a CollideMask for most kinds of nodes.

For nodes that can be collided with, such as GeomNode and CollisionNode, this returns all bits on.

Reimplemented from PandaNode.

Definition at line 574 of file geomNode.cxx.

References BitMask< WType, nbits >::all_on().

◆ get_preserved()

bool GeomNode::get_preserved ( ) const

inline

Returns the "preserved" flag.

When this is true, the GeomNode will be left untouched by any flatten operations.

Definition at line 28 of file geomNode.I.

◆ is_geom_node()

bool GeomNode::is_geom_node ( ) const

virtual

A simple downcast check.

Returns true if this kind of node happens to inherit from GeomNode, false otherwise.

This is provided as a a faster alternative to calling is_of_type(GeomNode::get_class_type()), since this test is so important to rendering.

Reimplemented from PandaNode.

Definition at line 855 of file geomNode.cxx.

◆ is_renderable()

virtual bool GeomNode::is_renderable ( ) const

virtual

Returns true if there is some value to visiting this particular node during the cull traversal for any camera, false otherwise.

This will be used to optimize the result of get_net_draw_show_mask(), so that any subtrees that contain only nodes for which is_renderable() is false need not be visited.

Reimplemented from PandaNode.

◆ make_copy()

PandaNode * GeomNode::make_copy ( ) const

virtual

Returns a newly-allocated PandaNode that is a shallow copy of this one.

It will be a different pointer, but its internal data may or may not be shared with that of the original PandaNode. No children will be copied.

Reimplemented from PandaNode.

Definition at line 87 of file geomNode.cxx.

◆ r_prepare_scene()

void GeomNode::r_prepare_scene	(	GraphicsStateGuardianBase *	gsg,
		const RenderState *	node_state,
		GeomTransformer &	transformer,
		Thread *	current_thread
	)

virtual

The recursive implementation of prepare_scene().

Don't call this directly; call PandaNode::prepare_scene() or NodePath::prepare_scene() instead.

Reimplemented from PandaNode.

Definition at line 362 of file geomNode.cxx.

◆ register_with_read_factory()

void GeomNode::register_with_read_factory ( )

static

Tells the BamReader how to create objects of type GeomNode.

Definition at line 976 of file geomNode.cxx.

References BamReader::get_factory(), and Factory< Type >::register_factory().

Referenced by init_libpgraph().

◆ remove_all_geoms()

void GeomNode::remove_all_geoms ( )

inline

Removes all the geoms from the node at once.

Definition at line 126 of file geomNode.I.

Referenced by SpriteParticleRenderer::~SpriteParticleRenderer().

◆ remove_geom()

void GeomNode::remove_geom ( int n )

inline

Removes the nth geom from the node.

Definition at line 113 of file geomNode.I.

◆ safe_to_combine()

bool GeomNode::safe_to_combine ( ) const

virtual

Returns true if it is generally safe to combine this particular kind of PandaNode with other kinds of PandaNodes of compatible type, adding children or whatever.

For instance, an LODNode should not be combined with any other PandaNode, because its set of children is meaningful.

Reimplemented from PandaNode.

Definition at line 349 of file geomNode.cxx.

◆ safe_to_flatten()

bool GeomNode::safe_to_flatten ( ) const

virtual

Returns true if it is generally safe to flatten out this particular kind of PandaNode by duplicating instances (by calling dupe_for_flatten()), false otherwise (for instance, a Camera cannot be safely flattened, because the Camera pointer itself is meaningful).

Reimplemented from PandaNode.

Definition at line 334 of file geomNode.cxx.

◆ set_geom()

void GeomNode::set_geom	(	int	n,
		Geom *	geom
	)

Replaces the nth Geom of the node with a new pointer.

There must already be a Geom in this slot.

Note that if this method is called in a downstream stage (for instance, during cull or draw), then it will propagate the new list of Geoms upstream all the way to pipeline stage 0, which may step on changes that were made independently in pipeline stage 0. Use with caution.

Definition at line 635 of file geomNode.cxx.

◆ set_geom_state()

void GeomNode::set_geom_state	(	int	n,
		const RenderState *	state
	)

inline

Changes the RenderState associated with the nth geom of the node.

This is just the RenderState directly associated with the Geom; the actual state in which the Geom is rendered will also be affected by RenderStates that appear on the scene graph in nodes above this GeomNode.

Note that if this method is called in a downstream stage (for instance, during cull or draw), then it will propagate the new list of Geoms upstream all the way to pipeline stage 0, which may step on changes that were made independently in pipeline stage 0. Use with caution.

Definition at line 102 of file geomNode.I.

◆ set_preserved()

void GeomNode::set_preserved ( bool value )

inline

Sets the "preserved" flag.

When this is true, the GeomNode will be left untouched by any flatten operations.

Definition at line 19 of file geomNode.I.

◆ unify()

void GeomNode::unify	(	int	max_indices,
		bool	preserve_order
	)

Attempts to unify all of the Geoms contained within this node into a single Geom, or at least as few Geoms as possible.

In turn, the individual GeomPrimitives contained within each resulting Geom are also unified. The goal is to reduce the number of GeomPrimitives within the node as far as possible. This may result in composite primitives, such as triangle strips and triangle fans, being decomposed into triangles. See also Geom::unify().

max_indices represents the maximum number of indices that will be put in any one GeomPrimitive. If preserve_order is true, then the primitives will not be reordered during the operation, even if this results in a suboptimal result.

In order for this to be successful, the primitives must reference the same GeomVertexData, have the same fundamental primitive type, and have compatible shade models.

Definition at line 712 of file geomNode.cxx.

◆ write_datagram()

void GeomNode::write_datagram	(	BamWriter *	manager,
		Datagram &	dg
	)

virtual

Writes the contents of this object to the datagram for shipping out to a Bam file.

Reimplemented from PandaNode.

Definition at line 985 of file geomNode.cxx.

References BamWriter::write_cdata(), and PandaNode::write_datagram().

◆ write_geoms()

void GeomNode::write_geoms	(	std::ostream &	out,
		int	indent_level
	)		const

Writes a short description of all the Geoms in the node.

Definition at line 783 of file geomNode.cxx.

References indent().

◆ write_verbose()

void GeomNode::write_verbose	(	std::ostream &	out,
		int	indent_level
	)		const

Writes a detailed description of all the Geoms in the node.

Definition at line 799 of file geomNode.cxx.

References indent().

◆ xform()

void GeomNode::xform ( const LMatrix4 & mat )

virtual

Transforms the contents of this node by the indicated matrix, if it means anything to do so.

For most kinds of nodes, this does nothing.

For a GeomNode, this does the right thing, but it is better to use a GeomTransformer instead, since it will share the new arrays properly between different GeomNodes.

Reimplemented from PandaNode.

Definition at line 321 of file geomNode.cxx.

Member Data Documentation

◆ get_default_collide_mask

CollideMask GeomNode::get_default_collide_mask

inline

Returns the default into_collide_mask assigned to new GeomNodes.

Definition at line 92 of file geomNode.h.

◆ get_geom_state

const RenderState * GeomNode::get_geom_state

inline

Returns the RenderState associated with the nth geom of the node.

This is just the RenderState directly associated with the Geom; the actual state in which the Geom is rendered will also be affected by RenderStates that appear on the scene graph in nodes above this GeomNode.

Definition at line 75 of file geomNode.h.

◆ get_num_geoms

int GeomNode::get_num_geoms

inline

Returns the number of geoms in the node.

Definition at line 71 of file geomNode.h.

Referenced by check_valid(), GeomTransformer::doubleside(), GeomTransformer::make_compatible_state(), and GeomTransformer::reverse().

The documentation for this class was generated from the following files:

panda/src/pgraph/geomNode.h
panda/src/pgraph/geomNode.cxx
panda/src/pgraph/geomNode.I

Classes

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Friends

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ add_for_draw()

◆ add_geom()

◆ add_geoms_from()

◆ apply_attribs_to_vertices()

◆ check_valid()

◆ combine_with()

◆ decompose()

◆ do_premunge()

◆ finalize()

◆ get_geoms()

◆ get_legal_collide_mask()

◆ get_preserved()

◆ is_geom_node()

◆ is_renderable()

◆ make_copy()

◆ r_prepare_scene()

◆ register_with_read_factory()

◆ remove_all_geoms()

◆ remove_geom()

◆ safe_to_combine()

◆ safe_to_flatten()

◆ set_geom()

◆ set_geom_state()

◆ set_preserved()

◆ unify()

◆ write_datagram()

◆ write_geoms()

◆ write_verbose()

◆ xform()

Member Data Documentation

◆ get_default_collide_mask

◆ get_geom_state

◆ get_num_geoms
