Terrain Renderer class utilizing the GPU. More...

#include "shaderTerrainMesh.h"

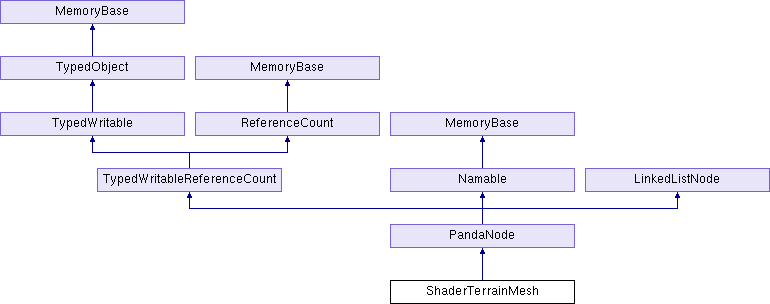

Inheritance diagram for ShaderTerrainMesh:

Public Member Functions
	ShaderTerrainMesh ()
	Constructs a new Terrain Mesh. More...

virtual void	add_for_draw (CullTraverser *trav, CullTraverserData &data)
	Adds the node's contents to the CullResult we are building up during the cull traversal, so that it will be drawn at render time. More...

virtual TypeHandle	force_init_type ()

bool	generate ()
	Generates the terrain mesh. More...

size_t	get_chunk_size () const

bool	get_generate_patches () const

Texture *	get_heightfield () const

PN_stdfloat	get_target_triangle_width () const

virtual TypeHandle	get_type () const

bool	get_update_enabled () const

virtual bool	is_renderable () const
	Returns true if there is some value to visiting this particular node during the cull traversal for any camera, false otherwise. More...

virtual bool	safe_to_combine () const
	Returns true if it is generally safe to combine this particular kind of PandaNode with other kinds of PandaNodes of compatible type, adding children or whatever. More...

virtual bool	safe_to_flatten () const
	Returns true if there is some value to visiting this particular node during the cull traversal for any camera, false otherwise. More...

void	set_chunk_size (size_t chunk_size)

void	set_generate_patches (bool generate_patches)

void	set_heightfield (Texture *heightfield)

void	set_target_triangle_width (PN_stdfloat target_triangle_width)

void	set_update_enabled (bool update_enabled)

LPoint3	uv_to_world (const LTexCoord &coord) const
	Transforms a texture coordinate to world space. More...

LPoint3	uv_to_world (PN_stdfloat u, PN_stdfloat v) const

Public Member Functions inherited from PandaNode
	PandaNode (const std::string &name)

void	add_child (PandaNode child_node, int sort=0, Thread current_thread=Thread::get_current_thread())

void	add_stashed (PandaNode child_node, int sort=0, Thread current_thread=Thread::get_current_thread())
	Adds a new child to the node, directly as a stashed child. More...

void	adjust_draw_mask (DrawMask show_mask, DrawMask hide_mask, DrawMask clear_mask)
	Adjusts the hide/show bits of this particular node. More...

virtual void	apply_attribs_to_vertices (const AccumulatedAttribs &attribs, int attrib_types, GeomTransformer &transformer)
	Applies whatever attributes are specified in the AccumulatedAttribs object (and by the attrib_types bitmask) to the vertices on this node, if appropriate. More...

virtual Light *	as_light ()
	Cross-casts the node to a Light pointer, if it is one of the four kinds of Light nodes, or returns NULL if it is not. More...

void	clear_attrib (TypeHandle type)

void	clear_attrib (int slot)
	Removes the render attribute of the given type from this node. More...

void	clear_bounds ()
	Reverses the effect of a previous call to set_bounds(), and allows the node's bounding volume to be automatically computed once more based on the contents of the node. More...

void	clear_effect (TypeHandle type)
	Removes the render effect of the given type from this node. More...

void	clear_effects (Thread *current_thread=Thread::get_current_thread())

void	clear_state (Thread *current_thread=Thread::get_current_thread())

void	clear_tag (const std::string &key, Thread *current_thread=Thread::get_current_thread())

void	clear_transform (Thread *current_thread=Thread::get_current_thread())

void	clear_unexpected_change (unsigned int flags)
	Sets one or more of the PandaNode::UnexpectedChange bits off, indicating that the corresponding property may once again change on this node. More...

virtual PandaNode *	combine_with (PandaNode *other)
	Collapses this PandaNode with the other PandaNode, if possible, and returns a pointer to the combined PandaNode, or NULL if the two PandaNodes cannot safely be combined. More...

int	compare_tags (const PandaNode *other) const
	Returns a number less than 0, 0, or greater than 0, to indicate the similarity of tags between this node and the other one. More...

void	copy_all_properties (PandaNode *other)
	Copies the TransformState, RenderState, RenderEffects, tags, Python tags, and the show/hide state from the other node onto this one. More...

void	copy_children (PandaNode other, Thread current_thread=Thread::get_current_thread())
	Makes another instance of all the children of the other node, copying them to this node. More...

void	copy_tags (PandaNode *other)
	Copies all of the tags stored on the other node onto this node. More...

int	count_num_descendants () const

virtual	CPT (TransformState) calc_tight_bounds(LPoint3 &min_point

	CPT (RenderAttrib) get_attrib(TypeHandle type) const

	CPT (RenderAttrib) get_attrib(int slot) const

	CPT (RenderEffect) get_effect(TypeHandle type) const

	CPT (RenderState) get_state(Thread *current_thread

	CPT (RenderEffects) get_effects(Thread *current_thread

	CPT (TransformState) get_transform(Thread *current_thread

	CPT (TransformState) get_prev_transform(Thread *current_thread

	CPT (RenderAttrib) get_off_clip_planes(Thread *current_thread

	CPT (BoundingVolume) get_bounds(Thread *current_thread

	CPT (BoundingVolume) get_bounds(UpdateSeq &seq

	CPT (BoundingVolume) get_internal_bounds(Thread *current_thread

virtual bool	cull_callback (CullTraverser *trav, CullTraverserData &data)

virtual PandaNode *	dupe_for_flatten () const
	This is similar to make_copy(), but it makes a copy for the specific purpose of flatten. More...

int	find_child (PandaNode node, Thread current_thread=Thread::get_current_thread()) const
	Returns the index of the indicated child node, if it is a child, or -1 if it is not. More...

int	find_parent (PandaNode node, Thread current_thread=Thread::get_current_thread()) const
	Returns the index of the indicated parent node, if it is a parent, or -1 if it is not. More...

int	find_stashed (PandaNode node, Thread current_thread=Thread::get_current_thread()) const
	Returns the index of the indicated stashed node, if it is a stashed child, or -1 if it is not. More...

BoundingVolume::BoundsType	get_bounds_type () const

PandaNode *	get_child (int n, Thread *current_thread=Thread::get_current_thread()) const

int	get_child_sort (int n, Thread *current_thread=Thread::get_current_thread()) const
	Returns the sort index of the nth child node of this node (that is, the number that was passed to add_child()). More...

Children	get_children (Thread *current_thread=Thread::get_current_thread()) const

DrawMask	get_draw_control_mask () const

DrawMask	get_draw_show_mask () const

int	get_fancy_bits (Thread *current_thread=Thread::get_current_thread()) const
	Returns the union of all of the enum FancyBits values corresponding to the various "fancy" attributes that are set on the node. More...

virtual int	get_first_visible_child () const
	Returns the index number of the first visible child of this node, or a number >= get_num_children() if there are no visible children of this node. More...

int	get_internal_vertices (Thread *current_thread=Thread::get_current_thread()) const

CollideMask	get_into_collide_mask () const

virtual CollideMask	get_legal_collide_mask () const

int	get_nested_vertices (Thread *current_thread=Thread::get_current_thread()) const

CollideMask	get_net_collide_mask (Thread *current_thread=Thread::get_current_thread()) const
	Returns the union of all into_collide_mask() values set at CollisionNodes at this level and below. More...

DrawMask	get_net_draw_control_mask () const
	Returns the set of bits in get_net_draw_show_mask() that have been explicitly set via adjust_draw_mask(), rather than implicitly inherited. More...

DrawMask	get_net_draw_show_mask () const
	Returns the union of all draw_show_mask values–of renderable nodes only– at this level and below. More...

virtual int	get_next_visible_child (int n) const
	Returns the index number of the next visible child of this node following the indicated child, or a number >= get_num_children() if there are no more visible children of this node. More...

int	get_num_children (Thread *current_thread=Thread::get_current_thread()) const

int	get_num_parents (Thread *current_thread=Thread::get_current_thread()) const

int	get_num_stashed (Thread *current_thread=Thread::get_current_thread()) const

size_t	get_num_tags () const

PandaNode *	get_parent (int n, Thread *current_thread=Thread::get_current_thread()) const

Parents	get_parents (Thread *current_thread=Thread::get_current_thread()) const

PandaNode *	get_stashed (int n, Thread *current_thread=Thread::get_current_thread()) const

Stashed	get_stashed (Thread *current_thread=Thread::get_current_thread()) const

int	get_stashed_sort (int n, Thread *current_thread=Thread::get_current_thread()) const
	Returns the sort index of the nth stashed node of this node (that is, the number that was passed to add_child()). More...

std::string	get_tag (const std::string &key, Thread *current_thread=Thread::get_current_thread()) const

std::string	get_tag_key (size_t i) const

void	get_tag_keys (vector_string &keys) const
	Fills the given vector up with the list of tags on this PandaNode. More...

unsigned int	get_unexpected_change (unsigned int flags) const
	Returns nonzero if any of the bits in the input parameter are set on this node, or zero if none of them are set. More...

virtual int	get_unsafe_to_apply_attribs () const
	Returns the union of all attributes from SceneGraphReducer::AttribTypes that may not safely be applied to the vertices of this node. More...

virtual int	get_visible_child () const
	Returns the index number of the currently visible child of this node. More...

bool	has_attrib (TypeHandle type) const

bool	has_attrib (int slot) const

bool	has_dirty_prev_transform () const

bool	has_effect (TypeHandle type) const

virtual bool	has_selective_visibility () const
	Should be overridden by derived classes to return true if this kind of node has some restrictions on the set of children that should be rendered. More...

virtual bool	has_single_child_visibility () const
	Should be overridden by derived classes to return true if this kind of node has the special property that just one of its children is visible at any given time, and furthermore that the particular visible child can be determined without reference to any external information (such as a camera). More...

bool	has_tag (const std::string &key, Thread *current_thread=Thread::get_current_thread()) const

bool	has_tags () const

virtual bool	is_ambient_light () const
	Returns true if this is an AmbientLight, false if it is not a light, or it is some other kind of light. More...

bool	is_bounds_stale () const

virtual bool	is_collision_node () const
	A simple downcast check. More...

bool	is_final (Thread *current_thread=Thread::get_current_thread()) const

virtual bool	is_geom_node () const
	A simple downcast check. More...

virtual bool	is_lod_node () const
	A simple downcast check. More...

bool	is_overall_hidden () const

bool	is_scene_root () const
	Returns true if this particular node is known to be the render root of some active DisplayRegion associated with the global GraphicsEngine, false otherwise. More...

bool	is_under_scene_root () const
	Returns true if this particular node is in a live scene graph: that is, it is a child or descendent of a node that is itself a scene root. More...

void	list_tags (std::ostream &out, const std::string &separator="\n") const
	Writes a list of all the tag keys assigned to the node to the indicated stream. More...

void	ls (std::ostream &out, int indent_level) const

virtual PandaNode *	make_copy () const
	Returns a newly-allocated PandaNode that is a shallow copy of this one. More...

void	mark_bounds_stale (Thread *current_thread=Thread::get_current_thread()) const

void	mark_internal_bounds_stale (Thread *current_thread=Thread::get_current_thread())

virtual void	output (std::ostream &out) const

void	prepare_scene (GraphicsStateGuardianBase gsg, const RenderState node_state)

virtual bool	preserve_name () const
	Returns true if the node's name has extrinsic meaning and must be preserved across a flatten operation, false otherwise. More...

	PT (PandaNode) copy_subgraph(Thread *current_thread

virtual void	r_prepare_scene (GraphicsStateGuardianBase gsg, const RenderState node_state, GeomTransformer &transformer, Thread *current_thread)
	The recursive implementation of prepare_scene(). More...

void	remove_all_children (Thread *current_thread=Thread::get_current_thread())
	Removes all the children from the node at once, including stashed children. More...

void	remove_child (int child_index, Thread *current_thread=Thread::get_current_thread())
	Removes the nth child from the node. More...

bool	remove_child (PandaNode child_node, Thread current_thread=Thread::get_current_thread())
	Removes the indicated child from the node. More...

void	remove_stashed (int child_index, Thread *current_thread=Thread::get_current_thread())
	Removes the nth stashed child from the node. More...

bool	replace_child (PandaNode orig_child, PandaNode new_child, Thread *current_thread=Thread::get_current_thread())
	Searches for the orig_child node in the node's list of children, and replaces it with the new_child instead. More...

void	replace_node (PandaNode *other)
	Inserts this node into the scene graph in place of the other one, and removes the other node. More...

void	reset_prev_transform (Thread *current_thread=Thread::get_current_thread())
	Resets the transform that represents this node's "previous" position to the same as the current transform. More...

virtual bool	safe_to_combine_children () const
	Returns true if it is generally safe to combine the children of this PandaNode with each other. More...

virtual bool	safe_to_flatten_below () const
	Returns true if a flatten operation may safely continue past this node, or false if nodes below this node may not be molested. More...

virtual bool	safe_to_modify_transform () const
	Returns true if it is safe to automatically adjust the transform on this kind of node. More...

virtual bool	safe_to_transform () const
	Returns true if it is generally safe to transform this particular kind of PandaNode by calling the xform() method, false otherwise. More...

void	set_attrib (const RenderAttrib *attrib, int override=0)
	Adds the indicated render attribute to the scene graph on this node. More...

void	set_bound (const BoundingVolume *volume)
	Deprecated. More...

void	set_bounds (const BoundingVolume *volume)
	Resets the bounding volume so that it is the indicated volume. More...

void	set_bounds_type (BoundingVolume::BoundsType bounds_type)
	Specifies the desired type of bounding volume that will be created for this node. More...

void	set_effect (const RenderEffect *effect)
	Adds the indicated render effect to the scene graph on this node. More...

void	set_effects (const RenderEffects effects, Thread current_thread=Thread::get_current_thread())

void	set_final (bool flag)

void	set_into_collide_mask (CollideMask mask)

void	set_overall_hidden (bool overall_hidden)

void	set_prev_transform (const TransformState transform, Thread current_thread=Thread::get_current_thread())
	Sets the transform that represents this node's "previous" position, one frame ago, for the purposes of detecting motion for accurate collision calculations. More...

void	set_state (const RenderState state, Thread current_thread=Thread::get_current_thread())

void	set_tag (const std::string &key, const std::string &value, Thread *current_thread=Thread::get_current_thread())

void	set_transform (const TransformState transform, Thread current_thread=Thread::get_current_thread())

void	set_unexpected_change (unsigned int flags)
	Sets one or more of the PandaNode::UnexpectedChange bits on, indicating that the corresponding property should not change again on this node. More...

bool	stash_child (PandaNode child_node, Thread current_thread=Thread::get_current_thread())
	Stashes the indicated child node. More...

void	stash_child (int child_index, Thread *current_thread=Thread::get_current_thread())
	Stashes the indicated child node. More...

void	steal_children (PandaNode other, Thread current_thread=Thread::get_current_thread())
	Moves all the children from the other node onto this node. More...

bool	unstash_child (PandaNode child_node, Thread current_thread=Thread::get_current_thread())
	Returns the indicated stashed node to normal child status. More...

void	unstash_child (int stashed_index, Thread *current_thread=Thread::get_current_thread())
	Returns the indicated stashed node to normal child status. More...

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

virtual void	write (std::ostream &out, int indent_level) const

virtual void	write_datagram (BamWriter *manager, Datagram &dg)
	Writes the contents of this object to the datagram for shipping out to a Bam file. More...

void	write_recorder (BamWriter *manager, Datagram &dg)
	This method is provided for the benefit of classes (like MouseRecorder) that inherit from PandaMode and also RecorderBase. More...

virtual void	xform (const LMatrix4 &mat)
	Transforms the contents of this PandaNode by the indicated matrix, if it means anything to do so. More...

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

virtual int	complete_pointers (TypedWritable *p_list, BamReader manager)
	Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More...

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Public Member Functions inherited from Namable
	Namable (const std::string &initial_name="")

void	clear_name ()
	Resets the Namable's name to empty. More...

const std::string &	get_name () const

bool	has_name () const
	Returns true if the Namable has a nonempty name set, false if the name is empty. More...

void	output (std::ostream &out) const
	Outputs the Namable. More...

void	set_name (const std::string &name)

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from PandaNode
static DrawMask	get_all_camera_mask ()

static TypeHandle	get_class_type ()

static DrawMask	get_overall_bit ()

static void	init_type ()

static	PT (PandaNode) decode_from_bam_stream(vector_uchar data

static void	register_with_read_factory ()
	Tells the BamReader how to create objects of type PandaNode. More...

static void	reset_all_prev_transform (Thread *current_thread=Thread::get_current_thread())
	Visits all nodes in the world with the _dirty_prev_transform flag–that is, all nodes whose _prev_transform is different from the _transform in pipeline stage 0–and resets the _prev_transform to be the same as _transform. More...

static void	set_scene_root_func (SceneRootFunc *func)
	This is used by the GraphicsEngine to hook in a pointer to the scene_root_func(), the function to determine whether the node is an active scene root. More...

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from Namable
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
	get_chunk_size
	Returns the chunk size. More...

	get_generate_patches
	Returns whether to generate patches. More...

	get_heightfield
	Returns the heightfield. More...

	get_target_triangle_width
	Returns the target triangle width. More...

	get_update_enabled
	Returns whether the terrain is getting updated. More...

	set_chunk_size
	Sets the chunk size. More...

	set_generate_patches
	Sets whether to generate patches. More...

	set_heightfield
	Sets the heightfield texture. More...

	set_target_triangle_width
	Sets the desired triangle width. More...

	set_update_enabled
	Sets whether to enable terrain updates. More...

Public Attributes inherited from PandaNode
	clear_tag
	Removes the value defined for this key on this particular node. More...

virtual LPoint3 bool const TransformState Thread *	current_thread = Thread::get_current_thread()) const

Thread *	current_thread = Thread::get_current_thread()) const

virtual LPoint3 bool &	found_any

	get_all_camera_mask
	Returns a DrawMask that is appropriate for rendering to all cameras. More...

	get_bounds_type
	Returns the bounding volume type set with set_bounds_type(). More...

	get_child
	Returns the nth child node of this node. More...

	get_children
	Returns an object that can be used to walk through the list of children of the node. More...

	get_draw_control_mask
	Returns the set of bits in draw_show_mask that are considered meaningful. More...

	get_draw_show_mask
	Returns the hide/show bits of this particular node. More...

	get_effects

	get_internal_bounds

	get_internal_vertices

	get_into_collide_mask
	Returns the "into" collide mask for this node. More...

	get_legal_collide_mask
	Returns the subset of CollideMask bits that may be set for this particular type of PandaNode. More...

	get_nested_vertices

	get_num_children
	Returns the number of child nodes this node has. More...

	get_num_parents
	Returns the number of parent nodes this node has. More...

	get_num_stashed
	Returns the number of stashed nodes this node has. More...

	get_num_tags

	get_overall_bit

	get_parent
	Returns the nth parent node of this node. More...

	get_parents
	Returns an object that can be used to walk through the list of parents of the node, similar to get_children() and get_stashed(). More...

	get_prev_transform

	get_python_tags

	get_stashed
	Returns the nth stashed child of this node. More...

	get_state

	get_tag

	get_tag_key

	get_transform

	has_tag

	is_bounds_stale

	is_final
	Returns the current state of the "final" flag. More...

	is_overall_hidden
	Returns true if the node has been hidden to all cameras by clearing its overall bit. More...

virtual LPoint3 &	max_point

static BamReader *	reader = nullptr)

	set_effects
	Sets the complete RenderEffects that will be applied this node. More...

	set_final

	set_into_collide_mask
	Sets the "into" CollideMask. More...

	set_overall_hidden
	Sets or clears the hidden flag. More...

	set_state
	Sets the complete RenderState that will be applied to all nodes at this level and below. More...

	set_tag
	Associates a user-defined value with a user-defined key which is stored on the node. More...

	set_transform
	Sets the transform that will be applied to this node and below. More...

virtual LPoint3 bool const TransformState *	transform

Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Public Attributes inherited from Namable
	get_name

	set_name

Additional Inherited Members
Public Types inherited from PandaNode
enum	FancyBits { FB_transform = 0x0001, FB_state = 0x0002, FB_effects = 0x0004, FB_tag = 0x0010, FB_draw_mask = 0x0020, FB_cull_callback = 0x0040 }

typedef bool	SceneRootFunc(const PandaNode *)

enum	UnexpectedChange { UC_parents = 0x001, UC_children = 0x002, UC_transform = 0x004, UC_state = 0x008, UC_draw_mask = 0x010 }

Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

Terrain Renderer class utilizing the GPU.

This class provides functionality to render heightfields of large sizes utilizing the GPU. Internally a quadtree is used to generate the LODs. The final terrain is then rendered using instancing on the GPU. This makes it possible to use very large heightfields (8192+) with very reasonable performance. The terrain provides options to control the LOD using a target triangle width, see ShaderTerrainMesh::set_target_triangle_width().

Because the Terrain is rendered entirely on the GPU, it needs a special vertex shader. There is a default vertex shader available, which you can use in your own shaders. IMPORTANT: If you don't set an appropriate shader on the terrain, nothing will be visible.

Definition at line 54 of file shaderTerrainMesh.h.

Constructor & Destructor Documentation

◆ ShaderTerrainMesh()

ShaderTerrainMesh::ShaderTerrainMesh ( )

Constructs a new Terrain Mesh.

This constructs a new terrain mesh. By default, no transform is set on the mesh, causing it to range over the unit box from (0, 0, 0) to (1, 1, 1). Usually you want to set a custom transform with NodePath::set_scale()

Definition at line 96 of file shaderTerrainMesh.cxx.

References PandaNode::set_bounds().

Member Function Documentation

◆ add_for_draw()

void ShaderTerrainMesh::add_for_draw	(	CullTraverser *	trav,
		CullTraverserData &	data
	)

virtual

Adds the node's contents to the CullResult we are building up during the cull traversal, so that it will be drawn at render time.

For most nodes other than GeomNodes, this is a do-nothing operation.

Reimplemented from PandaNode.

Definition at line 466 of file shaderTerrainMesh.cxx.

◆ generate()

bool ShaderTerrainMesh::generate ( )

Generates the terrain mesh.

This generates the terrain mesh, initializing all chunks of the internal used quadtree. At this point, a heightfield and a chunk size should have been set, otherwise an error is thrown.

If anything goes wrong, like a missing heightfield, then an error is printed and false is returned.

Returns: true if the terrain was initialized, false if an error occured

Definition at line 124 of file shaderTerrainMesh.cxx.

References check_power_of_two(), and PNMImage::clear().

◆ is_renderable()

bool ShaderTerrainMesh::is_renderable ( ) const

virtual

Returns true if there is some value to visiting this particular node during the cull traversal for any camera, false otherwise.

This will be used to optimize the result of get_net_draw_show_mask(), so that any subtrees that contain only nodes for which is_renderable() is false need not be visited.

Reimplemented from PandaNode.

Definition at line 445 of file shaderTerrainMesh.cxx.

◆ safe_to_combine()

bool ShaderTerrainMesh::safe_to_combine ( ) const

virtual

Returns true if it is generally safe to combine this particular kind of PandaNode with other kinds of PandaNodes of compatible type, adding children or whatever.

For instance, an LODNode should not be combined with any other PandaNode, because its set of children is meaningful.

Reimplemented from PandaNode.

Definition at line 459 of file shaderTerrainMesh.cxx.

◆ safe_to_flatten()

bool ShaderTerrainMesh::safe_to_flatten ( ) const

virtual

Returns true if there is some value to visiting this particular node during the cull traversal for any camera, false otherwise.

This will be used to optimize the result of get_net_draw_show_mask(), so that any subtrees that contain only nodes for which is_renderable() is false need not be visited.

Reimplemented from PandaNode.

Definition at line 452 of file shaderTerrainMesh.cxx.

◆ uv_to_world() [1/2]

LPoint3 ShaderTerrainMesh::uv_to_world ( const LTexCoord & coord ) const

Transforms a texture coordinate to world space.

This transforms a texture coordinatefrom uv-space (0 to 1) to world space. This takes the terrains transform into account, and also samples the heightmap. This method should be called after generate().

Parameters

coord Coordinate in uv-space from 0, 0 to 1, 1

Returns: World-Space point

Definition at line 717 of file shaderTerrainMesh.cxx.

◆ uv_to_world() [2/2]

LPoint3 ShaderTerrainMesh::uv_to_world	(	PN_stdfloat	u,
		PN_stdfloat	v
	)		const

inline

See also: ShaderTerrainMesh::uv_to_world(LTexCoord)

Definition at line 190 of file shaderTerrainMesh.I.

Member Data Documentation

◆ get_chunk_size

size_t ShaderTerrainMesh::get_chunk_size

inline

Returns the chunk size.

This returns the chunk size, previously set with set_chunk_size()

Returns: Chunk size

Definition at line 66 of file shaderTerrainMesh.h.

◆ get_generate_patches

bool ShaderTerrainMesh::get_generate_patches

inline

Returns whether to generate patches.

This returns whether patches are generated, previously set with set_generate_patches()

Returns: Whether to generate patches

Definition at line 70 of file shaderTerrainMesh.h.

◆ get_heightfield

Texture * ShaderTerrainMesh::get_heightfield

inline

Returns the heightfield.

This returns the terrain heightfield, previously set with set_heightfield()

Returns: Path to the heightfield

Definition at line 62 of file shaderTerrainMesh.h.

◆ get_target_triangle_width

PN_stdfloat ShaderTerrainMesh::get_target_triangle_width

inline

Returns the target triangle width.

This returns the target triangle width, previously set with ShaderTerrainMesh::set_target_triangle_width()

Returns: Target triangle width

Definition at line 78 of file shaderTerrainMesh.h.

◆ get_update_enabled

bool ShaderTerrainMesh::get_update_enabled

inline

Returns whether the terrain is getting updated.

This returns whether the terrain is getting updates, previously set with set_update_enabled()

Returns: Whether to update the terrain

Definition at line 74 of file shaderTerrainMesh.h.

◆ set_chunk_size

void ShaderTerrainMesh::set_chunk_size

inline

Sets the chunk size.

This sets the chunk size of the terrain. A chunk is basically the smallest unit in LOD. If the chunk size is too small, the terrain will perform bad, since there will be way too many chunks. If the chunk size is too big, you will not get proper LOD, and might also get bad performance.

For terrains of the size 4096x4096 or 8192x8192, a chunk size of 32 seems to produce good results. For smaller resolutions, you should try out a size of 16 or even 8 for very small terrains.

The amount of chunks generated for the last level equals to (heightfield_size / chunk_size) ** 2. The chunk size has to be a power of two.

Parameters

chunk_size Size of the chunks, has to be a power of two

Definition at line 66 of file shaderTerrainMesh.h.

◆ set_generate_patches

void ShaderTerrainMesh::set_generate_patches

inline

Sets whether to generate patches.

If this option is set to true, GeomPatches will be used instead of GeomTriangles. This is required when the terrain is used with tesselation shaders, since patches are required for tesselation, whereas triangles are required for regular rendering.

If this option is set to true while not using a tesselation shader, the terrain will not get rendered, or even produce errors. The same applies when this is option is not set, but the terrain is used with tesselation shaders.

Parameters

generate_patches [description]

Definition at line 70 of file shaderTerrainMesh.h.

◆ set_heightfield

void ShaderTerrainMesh::set_heightfield

inline

Sets the heightfield texture.

This sets the heightfield texture. It should be 16bit single channel, and have a power-of-two resolution greater than 32. Common sizes are 2048x2048 or 4096x4096.

You should call generate() after setting the heightfield.

Parameters

filename Heightfield texture

Definition at line 62 of file shaderTerrainMesh.h.

◆ set_target_triangle_width

void ShaderTerrainMesh::set_target_triangle_width

inline

Sets the desired triangle width.

This sets the desired width a triangle should have in pixels. A value of 10.0 for example will make the terrain tesselate everything in a way that each triangle edge roughly is 10 pixels wide. Of course this will not always accurately match, however you can use this setting to control the LOD algorithm of the terrain.

Parameters

target_triangle_width Desired triangle width in pixels

Definition at line 78 of file shaderTerrainMesh.h.

◆ set_update_enabled

void ShaderTerrainMesh::set_update_enabled

inline

Sets whether to enable terrain updates.

This flag controls whether the terrain should be updated. If this value is set to false, no updating of the terrain will happen. This can be useful to debug the culling algorithm used by the terrain.

Parameters

update_enabled Whether to update the terrain

Definition at line 74 of file shaderTerrainMesh.h.

The documentation for this class was generated from the following files:

panda/src/grutil/shaderTerrainMesh.h
panda/src/grutil/shaderTerrainMesh.cxx
panda/src/grutil/shaderTerrainMesh.I

Public Member Functions

Static Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ShaderTerrainMesh()

Member Function Documentation

◆ add_for_draw()

◆ generate()

◆ is_renderable()

◆ safe_to_combine()

◆ safe_to_flatten()

◆ uv_to_world() [1/2]

◆ uv_to_world() [2/2]

Member Data Documentation

◆ get_chunk_size

◆ get_generate_patches

◆ get_heightfield

◆ get_target_triangle_width

◆ get_update_enabled

◆ set_chunk_size

◆ set_generate_patches

◆ set_heightfield

◆ set_target_triangle_width

◆ set_update_enabled
