This is the base class for all the various kinds of gui widget objects. More...

#include "pgItem.h"

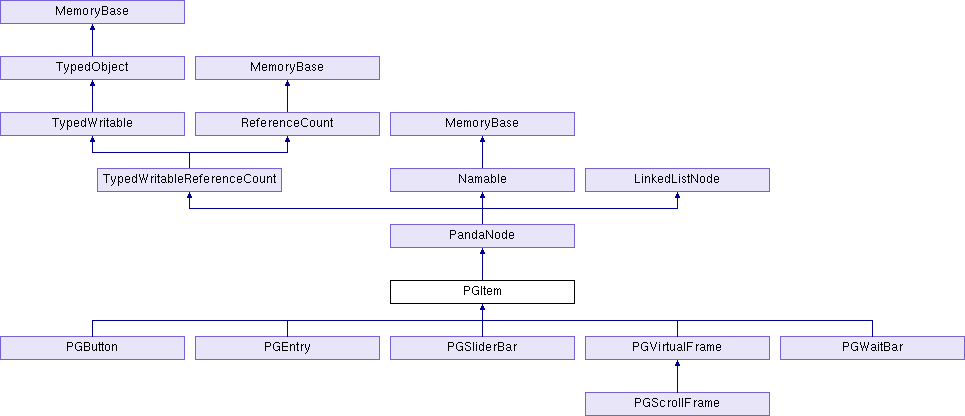

Inheritance diagram for PGItem:

Public Member Functions
	PGItem (const std::string &name)

virtual void	candidate (const MouseWatcherParameter &param, bool background)
	This is a callback hook function, called whenever the user highlights an option in the IME window. More...

void	clear_frame ()
	Removes the bounding rectangle from the item. More...

void	clear_state_def (int state)
	Resets the NodePath assigned to the indicated state to its initial default, with only a frame representation if appropriate. More...

virtual void	enter_region (const MouseWatcherParameter &param)
	This is a callback hook function, called whenever the mouse enters the region. More...

virtual void	exit_region (const MouseWatcherParameter &param)
	This is a callback hook function, called whenever the mouse exits the region. More...

virtual void	focus_in ()
	This is a callback hook function, called whenever the widget gets the keyboard focus. More...

virtual void	focus_out ()
	This is a callback hook function, called whenever the widget loses the keyboard focus. More...

virtual TypeHandle	force_init_type ()

bool	get_active () const
	Returns whether the PGItem is currently active for mouse events. More...

bool	get_background_focus () const
	Returns whether background_focus is currently enabled. More...

std::string	get_enter_event () const
	Returns the event name that will be thrown when the item is active and the mouse enters its frame, but not any nested frames. More...

std::string	get_exit_event () const
	Returns the event name that will be thrown when the item is active and the mouse exits its frame, or enters a nested frame. More...

bool	get_focus () const
	Returns whether the PGItem currently has focus for keyboard events. More...

std::string	get_focus_in_event () const
	Returns the event name that will be thrown when the item gets the keyboard focus. More...

std::string	get_focus_out_event () const
	Returns the event name that will be thrown when the item loses the keyboard focus. More...

const LVecBase4 &	get_frame () const
	Returns the bounding rectangle of the item. More...

LMatrix4	get_frame_inv_xform () const
	Returns the inverse of the frame transform matrix. More...

PGFrameStyle	get_frame_style (int state)
	Returns the kind of frame that will be drawn behind the item when it is in the indicated state. More...

const std::string &	get_id () const
	Returns the unique ID assigned to this PGItem. More...

std::string	get_keystroke_event () const
	Returns the event name that will be thrown when the item is active and any key is pressed by the user. More...

PGItemNotify *	get_notify () const
	Returns the object which will be notified when the PGItem changes, if any. More...

int	get_num_state_defs () const

std::string	get_press_event (const ButtonHandle &button) const
	Returns the event name that will be thrown when the item is active and the indicated mouse or keyboard button is depressed while the mouse is within the frame. More...

PGMouseWatcherRegion *	get_region () const
	Returns the MouseWatcherRegion associated with this item. More...

std::string	get_release_event (const ButtonHandle &button) const
	Returns the event name that will be thrown when the item is active and the indicated mouse or keyboard button, formerly clicked down is within the frame, is released. More...

std::string	get_repeat_event (const ButtonHandle &button) const
	Returns the event name that will be thrown when the item is active and the indicated mouse or keyboard button is continuously held down while the mouse is within the frame. More...

int	get_state () const
	Returns the "state" of this particular PGItem. More...

NodePath &	get_state_def (int state)

int	get_suppress_flags () const
	This is just an interface to get the suppress flags on the underlying MouseWatcherRegion. More...

virtual TypeHandle	get_type () const

std::string	get_within_event () const
	Returns the event name that will be thrown when the item is active and the mouse moves within the boundaries of the frame. More...

std::string	get_without_event () const
	Returns the event name that will be thrown when the item is active and the mouse moves completely outside the boundaries of the frame. More...

bool	has_frame () const
	Returns true if the item has a bounding rectangle; see set_frame(). More...

bool	has_notify () const
	Returns true if there is an object configured to be notified when the PGItem changes, false otherwise. More...

bool	has_state_def (int state) const
	Returns true if get_state_def() has ever been called for the indicated state (thus defining a render subgraph for this state index), false otherwise. More...

NodePath	instance_to_state_def (int state, const NodePath &path)
	Parents an instance of the bottom node of the indicated NodePath to the indicated state index. More...

virtual void	keystroke (const MouseWatcherParameter &param, bool background)
	This is a callback hook function, called whenever the user presses a key. More...

virtual void	move (const MouseWatcherParameter &param)
	This is a callback hook function, called whenever a mouse is moved while within the region. More...

virtual void	press (const MouseWatcherParameter &param, bool background)
	This is a callback hook function, called whenever a mouse or keyboard button is depressed while the mouse is within the region. More...

virtual void	release (const MouseWatcherParameter &param, bool background)
	This is a callback hook function, called whenever a mouse or keyboard button previously depressed with press() is released. More...

virtual void	set_active (bool active)
	Sets whether the PGItem is active for mouse watching. More...

void	set_background_focus (bool focus)
	Sets the background_focus flag for this item. More...

virtual void	set_focus (bool focus)
	Sets whether the PGItem currently has keyboard focus. More...

void	set_frame (PN_stdfloat left, PN_stdfloat right, PN_stdfloat bottom, PN_stdfloat top)
	Sets the bounding rectangle of the item, in local coordinates. More...

void	set_frame (const LVecBase4 &frame)
	Sets the bounding rectangle of the item, in local coordinates. More...

void	set_frame_style (int state, const PGFrameStyle &style)
	Changes the kind of frame that will be drawn behind the item when it is in the indicated state. More...

void	set_id (const std::string &id)
	Set the unique ID assigned to this PGItem. More...

void	set_name (const std::string &name)

void	set_notify (PGItemNotify *notify)
	Sets the object which will be notified when the PGItem changes. More...

void	set_state (int state)
	Sets the "state" of this particular PGItem. More...

void	set_suppress_flags (int suppress_flags)
	This is just an interface to set the suppress flags on the underlying MouseWatcherRegion. More...

virtual void	within_region (const MouseWatcherParameter &param)
	This is a callback hook function, called whenever the mouse moves within the boundaries of the region, even if it is also within the boundaries of a nested region. More...

virtual void	without_region (const MouseWatcherParameter &param)
	This is a callback hook function, called whenever the mouse moves completely outside the boundaries of the region. More...

Public Member Functions inherited from PandaNode
	PandaNode (const std::string &name)

void	add_child (PandaNode child_node, int sort=0, Thread current_thread=Thread::get_current_thread())

virtual void	add_for_draw (CullTraverser *trav, CullTraverserData &data)
	Adds the node's contents to the CullResult we are building up during the cull traversal, so that it will be drawn at render time. More...

void	add_stashed (PandaNode child_node, int sort=0, Thread current_thread=Thread::get_current_thread())
	Adds a new child to the node, directly as a stashed child. More...

void	adjust_draw_mask (DrawMask show_mask, DrawMask hide_mask, DrawMask clear_mask)
	Adjusts the hide/show bits of this particular node. More...

virtual void	apply_attribs_to_vertices (const AccumulatedAttribs &attribs, int attrib_types, GeomTransformer &transformer)
	Applies whatever attributes are specified in the AccumulatedAttribs object (and by the attrib_types bitmask) to the vertices on this node, if appropriate. More...

virtual Light *	as_light ()
	Cross-casts the node to a Light pointer, if it is one of the four kinds of Light nodes, or returns NULL if it is not. More...

void	clear_attrib (TypeHandle type)

void	clear_attrib (int slot)
	Removes the render attribute of the given type from this node. More...

void	clear_bounds ()
	Reverses the effect of a previous call to set_bounds(), and allows the node's bounding volume to be automatically computed once more based on the contents of the node. More...

void	clear_effect (TypeHandle type)
	Removes the render effect of the given type from this node. More...

void	clear_effects (Thread *current_thread=Thread::get_current_thread())

void	clear_state (Thread *current_thread=Thread::get_current_thread())

void	clear_tag (const std::string &key, Thread *current_thread=Thread::get_current_thread())

void	clear_transform (Thread *current_thread=Thread::get_current_thread())

void	clear_unexpected_change (unsigned int flags)
	Sets one or more of the PandaNode::UnexpectedChange bits off, indicating that the corresponding property may once again change on this node. More...

virtual PandaNode *	combine_with (PandaNode *other)
	Collapses this PandaNode with the other PandaNode, if possible, and returns a pointer to the combined PandaNode, or NULL if the two PandaNodes cannot safely be combined. More...

int	compare_tags (const PandaNode *other) const
	Returns a number less than 0, 0, or greater than 0, to indicate the similarity of tags between this node and the other one. More...

void	copy_all_properties (PandaNode *other)
	Copies the TransformState, RenderState, RenderEffects, tags, Python tags, and the show/hide state from the other node onto this one. More...

void	copy_children (PandaNode other, Thread current_thread=Thread::get_current_thread())
	Makes another instance of all the children of the other node, copying them to this node. More...

void	copy_tags (PandaNode *other)
	Copies all of the tags stored on the other node onto this node. More...

int	count_num_descendants () const

virtual	CPT (TransformState) calc_tight_bounds(LPoint3 &min_point

	CPT (RenderAttrib) get_attrib(TypeHandle type) const

	CPT (RenderAttrib) get_attrib(int slot) const

	CPT (RenderEffect) get_effect(TypeHandle type) const

	CPT (RenderState) get_state(Thread *current_thread

	CPT (RenderEffects) get_effects(Thread *current_thread

	CPT (TransformState) get_transform(Thread *current_thread

	CPT (TransformState) get_prev_transform(Thread *current_thread

	CPT (RenderAttrib) get_off_clip_planes(Thread *current_thread

	CPT (BoundingVolume) get_bounds(Thread *current_thread

	CPT (BoundingVolume) get_bounds(UpdateSeq &seq

	CPT (BoundingVolume) get_internal_bounds(Thread *current_thread

virtual PandaNode *	dupe_for_flatten () const
	This is similar to make_copy(), but it makes a copy for the specific purpose of flatten. More...

int	find_child (PandaNode node, Thread current_thread=Thread::get_current_thread()) const
	Returns the index of the indicated child node, if it is a child, or -1 if it is not. More...

int	find_parent (PandaNode node, Thread current_thread=Thread::get_current_thread()) const
	Returns the index of the indicated parent node, if it is a parent, or -1 if it is not. More...

int	find_stashed (PandaNode node, Thread current_thread=Thread::get_current_thread()) const
	Returns the index of the indicated stashed node, if it is a stashed child, or -1 if it is not. More...

BoundingVolume::BoundsType	get_bounds_type () const

PandaNode *	get_child (int n, Thread *current_thread=Thread::get_current_thread()) const

int	get_child_sort (int n, Thread *current_thread=Thread::get_current_thread()) const
	Returns the sort index of the nth child node of this node (that is, the number that was passed to add_child()). More...

Children	get_children (Thread *current_thread=Thread::get_current_thread()) const

DrawMask	get_draw_control_mask () const

DrawMask	get_draw_show_mask () const

int	get_fancy_bits (Thread *current_thread=Thread::get_current_thread()) const
	Returns the union of all of the enum FancyBits values corresponding to the various "fancy" attributes that are set on the node. More...

virtual int	get_first_visible_child () const
	Returns the index number of the first visible child of this node, or a number >= get_num_children() if there are no visible children of this node. More...

int	get_internal_vertices (Thread *current_thread=Thread::get_current_thread()) const

CollideMask	get_into_collide_mask () const

virtual CollideMask	get_legal_collide_mask () const

int	get_nested_vertices (Thread *current_thread=Thread::get_current_thread()) const

CollideMask	get_net_collide_mask (Thread *current_thread=Thread::get_current_thread()) const
	Returns the union of all into_collide_mask() values set at CollisionNodes at this level and below. More...

DrawMask	get_net_draw_control_mask () const
	Returns the set of bits in get_net_draw_show_mask() that have been explicitly set via adjust_draw_mask(), rather than implicitly inherited. More...

DrawMask	get_net_draw_show_mask () const
	Returns the union of all draw_show_mask values–of renderable nodes only– at this level and below. More...

virtual int	get_next_visible_child (int n) const
	Returns the index number of the next visible child of this node following the indicated child, or a number >= get_num_children() if there are no more visible children of this node. More...

int	get_num_children (Thread *current_thread=Thread::get_current_thread()) const

int	get_num_parents (Thread *current_thread=Thread::get_current_thread()) const

int	get_num_stashed (Thread *current_thread=Thread::get_current_thread()) const

size_t	get_num_tags () const

PandaNode *	get_parent (int n, Thread *current_thread=Thread::get_current_thread()) const

Parents	get_parents (Thread *current_thread=Thread::get_current_thread()) const

PandaNode *	get_stashed (int n, Thread *current_thread=Thread::get_current_thread()) const

Stashed	get_stashed (Thread *current_thread=Thread::get_current_thread()) const

int	get_stashed_sort (int n, Thread *current_thread=Thread::get_current_thread()) const
	Returns the sort index of the nth stashed node of this node (that is, the number that was passed to add_child()). More...

std::string	get_tag (const std::string &key, Thread *current_thread=Thread::get_current_thread()) const

std::string	get_tag_key (size_t i) const

void	get_tag_keys (vector_string &keys) const
	Fills the given vector up with the list of tags on this PandaNode. More...

unsigned int	get_unexpected_change (unsigned int flags) const
	Returns nonzero if any of the bits in the input parameter are set on this node, or zero if none of them are set. More...

virtual int	get_unsafe_to_apply_attribs () const
	Returns the union of all attributes from SceneGraphReducer::AttribTypes that may not safely be applied to the vertices of this node. More...

virtual int	get_visible_child () const
	Returns the index number of the currently visible child of this node. More...

bool	has_attrib (TypeHandle type) const

bool	has_attrib (int slot) const

bool	has_dirty_prev_transform () const

bool	has_effect (TypeHandle type) const

virtual bool	has_selective_visibility () const
	Should be overridden by derived classes to return true if this kind of node has some restrictions on the set of children that should be rendered. More...

virtual bool	has_single_child_visibility () const
	Should be overridden by derived classes to return true if this kind of node has the special property that just one of its children is visible at any given time, and furthermore that the particular visible child can be determined without reference to any external information (such as a camera). More...

bool	has_tag (const std::string &key, Thread *current_thread=Thread::get_current_thread()) const

bool	has_tags () const

virtual bool	is_ambient_light () const
	Returns true if this is an AmbientLight, false if it is not a light, or it is some other kind of light. More...

bool	is_bounds_stale () const

virtual bool	is_collision_node () const
	A simple downcast check. More...

bool	is_final (Thread *current_thread=Thread::get_current_thread()) const

virtual bool	is_geom_node () const
	A simple downcast check. More...

virtual bool	is_lod_node () const
	A simple downcast check. More...

bool	is_overall_hidden () const

bool	is_scene_root () const
	Returns true if this particular node is known to be the render root of some active DisplayRegion associated with the global GraphicsEngine, false otherwise. More...

bool	is_under_scene_root () const
	Returns true if this particular node is in a live scene graph: that is, it is a child or descendent of a node that is itself a scene root. More...

void	list_tags (std::ostream &out, const std::string &separator="\n") const
	Writes a list of all the tag keys assigned to the node to the indicated stream. More...

void	ls (std::ostream &out, int indent_level) const

void	mark_bounds_stale (Thread *current_thread=Thread::get_current_thread()) const

void	mark_internal_bounds_stale (Thread *current_thread=Thread::get_current_thread())

virtual void	output (std::ostream &out) const

void	prepare_scene (GraphicsStateGuardianBase gsg, const RenderState node_state)

virtual bool	preserve_name () const
	Returns true if the node's name has extrinsic meaning and must be preserved across a flatten operation, false otherwise. More...

	PT (PandaNode) copy_subgraph(Thread *current_thread

void	remove_all_children (Thread *current_thread=Thread::get_current_thread())
	Removes all the children from the node at once, including stashed children. More...

void	remove_child (int child_index, Thread *current_thread=Thread::get_current_thread())
	Removes the nth child from the node. More...

bool	remove_child (PandaNode child_node, Thread current_thread=Thread::get_current_thread())
	Removes the indicated child from the node. More...

void	remove_stashed (int child_index, Thread *current_thread=Thread::get_current_thread())
	Removes the nth stashed child from the node. More...

bool	replace_child (PandaNode orig_child, PandaNode new_child, Thread *current_thread=Thread::get_current_thread())
	Searches for the orig_child node in the node's list of children, and replaces it with the new_child instead. More...

void	replace_node (PandaNode *other)
	Inserts this node into the scene graph in place of the other one, and removes the other node. More...

void	reset_prev_transform (Thread *current_thread=Thread::get_current_thread())
	Resets the transform that represents this node's "previous" position to the same as the current transform. More...

virtual bool	safe_to_combine () const
	Returns true if it is generally safe to combine this particular kind of PandaNode with other kinds of PandaNodes of compatible type, adding children or whatever. More...

virtual bool	safe_to_combine_children () const
	Returns true if it is generally safe to combine the children of this PandaNode with each other. More...

virtual bool	safe_to_flatten () const
	Returns true if it is generally safe to flatten out this particular kind of PandaNode by duplicating instances (by calling dupe_for_flatten()), false otherwise (for instance, a Camera cannot be safely flattened, because the Camera pointer itself is meaningful). More...

virtual bool	safe_to_flatten_below () const
	Returns true if a flatten operation may safely continue past this node, or false if nodes below this node may not be molested. More...

virtual bool	safe_to_modify_transform () const
	Returns true if it is safe to automatically adjust the transform on this kind of node. More...

virtual bool	safe_to_transform () const
	Returns true if it is generally safe to transform this particular kind of PandaNode by calling the xform() method, false otherwise. More...

void	set_attrib (const RenderAttrib *attrib, int override=0)
	Adds the indicated render attribute to the scene graph on this node. More...

void	set_bound (const BoundingVolume *volume)
	Deprecated. More...

void	set_bounds (const BoundingVolume *volume)
	Resets the bounding volume so that it is the indicated volume. More...

void	set_bounds_type (BoundingVolume::BoundsType bounds_type)
	Specifies the desired type of bounding volume that will be created for this node. More...

void	set_effect (const RenderEffect *effect)
	Adds the indicated render effect to the scene graph on this node. More...

void	set_effects (const RenderEffects effects, Thread current_thread=Thread::get_current_thread())

void	set_final (bool flag)

void	set_into_collide_mask (CollideMask mask)

void	set_overall_hidden (bool overall_hidden)

void	set_prev_transform (const TransformState transform, Thread current_thread=Thread::get_current_thread())
	Sets the transform that represents this node's "previous" position, one frame ago, for the purposes of detecting motion for accurate collision calculations. More...

void	set_state (const RenderState state, Thread current_thread=Thread::get_current_thread())

void	set_tag (const std::string &key, const std::string &value, Thread *current_thread=Thread::get_current_thread())

void	set_transform (const TransformState transform, Thread current_thread=Thread::get_current_thread())

void	set_unexpected_change (unsigned int flags)
	Sets one or more of the PandaNode::UnexpectedChange bits on, indicating that the corresponding property should not change again on this node. More...

bool	stash_child (PandaNode child_node, Thread current_thread=Thread::get_current_thread())
	Stashes the indicated child node. More...

void	stash_child (int child_index, Thread *current_thread=Thread::get_current_thread())
	Stashes the indicated child node. More...

void	steal_children (PandaNode other, Thread current_thread=Thread::get_current_thread())
	Moves all the children from the other node onto this node. More...

bool	unstash_child (PandaNode child_node, Thread current_thread=Thread::get_current_thread())
	Returns the indicated stashed node to normal child status. More...

void	unstash_child (int stashed_index, Thread *current_thread=Thread::get_current_thread())
	Returns the indicated stashed node to normal child status. More...

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

virtual void	write (std::ostream &out, int indent_level) const

virtual void	write_datagram (BamWriter *manager, Datagram &dg)
	Writes the contents of this object to the datagram for shipping out to a Bam file. More...

void	write_recorder (BamWriter *manager, Datagram &dg)
	This method is provided for the benefit of classes (like MouseRecorder) that inherit from PandaMode and also RecorderBase. More...

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

virtual int	complete_pointers (TypedWritable *p_list, BamReader manager)
	Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More...

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Public Member Functions inherited from Namable
	Namable (const std::string &initial_name="")

void	clear_name ()
	Resets the Namable's name to empty. More...

const std::string &	get_name () const

bool	has_name () const
	Returns true if the Namable has a nonempty name set, false if the name is empty. More...

void	output (std::ostream &out) const
	Outputs the Namable. More...

void	set_name (const std::string &name)

Static Public Member Functions
static void	background_candidate (const MouseWatcherParameter &param)
	Calls candidate() on all the PGItems with background focus. More...

static void	background_keystroke (const MouseWatcherParameter &param)
	Calls keystroke() on all the PGItems with background focus. More...

static void	background_press (const MouseWatcherParameter &param)
	Calls press() on all the PGItems with background focus. More...

static void	background_release (const MouseWatcherParameter &param)
	Calls release() on all the PGItems with background focus. More...

static TypeHandle	get_class_type ()

static std::string	get_enter_prefix ()
	Returns the prefix that is used to define the enter event for all PGItems. More...

static std::string	get_exit_prefix ()
	Returns the prefix that is used to define the exit event for all PGItems. More...

static std::string	get_focus_in_prefix ()
	Returns the prefix that is used to define the focus_in event for all PGItems. More...

static PGItem *	get_focus_item ()
	Returns the one PGItem in the world that currently has keyboard focus, if any, or NULL if no item has keyboard focus. More...

static std::string	get_focus_out_prefix ()
	Returns the prefix that is used to define the focus_out event for all PGItems. More...

static std::string	get_keystroke_prefix ()
	Returns the prefix that is used to define the keystroke event for all PGItems. More...

static std::string	get_press_prefix ()
	Returns the prefix that is used to define the press event for all PGItems. More...

static std::string	get_release_prefix ()
	Returns the prefix that is used to define the release event for all PGItems. More...

static std::string	get_repeat_prefix ()
	Returns the prefix that is used to define the repeat event for all PGItems. More...

static TextNode *	get_text_node ()
	Returns the TextNode object that will be used by all PGItems to generate default labels given a string. More...

static std::string	get_within_prefix ()
	Returns the prefix that is used to define the within event for all PGItems. More...

static std::string	get_without_prefix ()
	Returns the prefix that is used to define the without event for all PGItems. More...

static void	init_type ()

static void	set_text_node (TextNode *node)
	Changes the TextNode object that will be used by all PGItems to generate default labels given a string. More...

Static Public Member Functions inherited from PandaNode
static DrawMask	get_all_camera_mask ()

static TypeHandle	get_class_type ()

static DrawMask	get_overall_bit ()

static void	init_type ()

static	PT (PandaNode) decode_from_bam_stream(vector_uchar data

static void	register_with_read_factory ()
	Tells the BamReader how to create objects of type PandaNode. More...

static void	reset_all_prev_transform (Thread *current_thread=Thread::get_current_thread())
	Visits all nodes in the world with the _dirty_prev_transform flag–that is, all nodes whose _prev_transform is different from the _transform in pipeline stage 0–and resets the _prev_transform to be the same as _transform. More...

static void	set_scene_root_func (SceneRootFunc *func)
	This is used by the GraphicsEngine to hook in a pointer to the scene_root_func(), the function to determine whether the node is an active scene root. More...

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from Namable
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
	get_num_state_defs
	Returns one more than the highest-numbered state def that was ever assigned to the PGItem. More...

	get_state_def
	Returns the Node that is the root of the subgraph that will be drawn when the PGItem is in the indicated state. More...

Public Attributes inherited from PandaNode
	clear_tag
	Removes the value defined for this key on this particular node. More...

virtual LPoint3 bool const TransformState Thread *	current_thread = Thread::get_current_thread()) const

Thread *	current_thread = Thread::get_current_thread()) const

virtual LPoint3 bool &	found_any

	get_all_camera_mask
	Returns a DrawMask that is appropriate for rendering to all cameras. More...

	get_bounds_type
	Returns the bounding volume type set with set_bounds_type(). More...

	get_child
	Returns the nth child node of this node. More...

	get_children
	Returns an object that can be used to walk through the list of children of the node. More...

	get_draw_control_mask
	Returns the set of bits in draw_show_mask that are considered meaningful. More...

	get_draw_show_mask
	Returns the hide/show bits of this particular node. More...

	get_effects

	get_internal_bounds

	get_internal_vertices

	get_into_collide_mask
	Returns the "into" collide mask for this node. More...

	get_legal_collide_mask
	Returns the subset of CollideMask bits that may be set for this particular type of PandaNode. More...

	get_nested_vertices

	get_num_children
	Returns the number of child nodes this node has. More...

	get_num_parents
	Returns the number of parent nodes this node has. More...

	get_num_stashed
	Returns the number of stashed nodes this node has. More...

	get_num_tags

	get_overall_bit

	get_parent
	Returns the nth parent node of this node. More...

	get_parents
	Returns an object that can be used to walk through the list of parents of the node, similar to get_children() and get_stashed(). More...

	get_prev_transform

	get_python_tags

	get_stashed
	Returns the nth stashed child of this node. More...

	get_state

	get_tag

	get_tag_key

	get_transform

	has_tag

	is_bounds_stale

	is_final
	Returns the current state of the "final" flag. More...

	is_overall_hidden
	Returns true if the node has been hidden to all cameras by clearing its overall bit. More...

virtual LPoint3 &	max_point

static BamReader *	reader = nullptr)

	set_effects
	Sets the complete RenderEffects that will be applied this node. More...

	set_final

	set_into_collide_mask
	Sets the "into" CollideMask. More...

	set_overall_hidden
	Sets or clears the hidden flag. More...

	set_state
	Sets the complete RenderState that will be applied to all nodes at this level and below. More...

	set_tag
	Associates a user-defined value with a user-defined key which is stored on the node. More...

	set_transform
	Sets the transform that will be applied to this node and below. More...

virtual LPoint3 bool const TransformState *	transform

Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Public Attributes inherited from Namable
	get_name

	set_name

Additional Inherited Members
Public Types inherited from PandaNode
enum	FancyBits { FB_transform = 0x0001, FB_state = 0x0002, FB_effects = 0x0004, FB_tag = 0x0010, FB_draw_mask = 0x0020, FB_cull_callback = 0x0040 }

typedef bool	SceneRootFunc(const PandaNode *)

enum	UnexpectedChange { UC_parents = 0x001, UC_children = 0x002, UC_transform = 0x004, UC_state = 0x008, UC_draw_mask = 0x010 }

Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

This is the base class for all the various kinds of gui widget objects.

It is a Node which corresponds to a rectangular region on the screen, and it may have any number of "state" subgraphs, one of which is rendered at any given time according to its current state.

The PGItem node must be parented to the scene graph somewhere beneath a PGTop node in order for this behavior to work.

Definition at line 53 of file pgItem.h.

Member Function Documentation

◆ background_candidate()

void PGItem::background_candidate ( const MouseWatcherParameter & param )

static

Calls candidate() on all the PGItems with background focus.

Definition at line 811 of file pgItem.cxx.

References candidate(), and get_focus().

Referenced by PGMouseWatcherBackground::candidate().

◆ background_keystroke()

void PGItem::background_keystroke ( const MouseWatcherParameter & param )

static

Calls keystroke() on all the PGItems with background focus.

Definition at line 797 of file pgItem.cxx.

References get_focus(), and keystroke().

Referenced by PGMouseWatcherBackground::keystroke().

◆ background_press()

void PGItem::background_press ( const MouseWatcherParameter & param )

static

Calls press() on all the PGItems with background focus.

Definition at line 769 of file pgItem.cxx.

References get_focus(), and press().

Referenced by PGMouseWatcherBackground::press().

◆ background_release()

void PGItem::background_release ( const MouseWatcherParameter & param )

static

Calls release() on all the PGItems with background focus.

Definition at line 783 of file pgItem.cxx.

References get_focus(), and release().

Referenced by PGMouseWatcherBackground::release().

◆ candidate()

void PGItem::candidate	(	const MouseWatcherParameter &	param,
		bool	background
	)

virtual

This is a callback hook function, called whenever the user highlights an option in the IME window.

Reimplemented in PGEntry.

Definition at line 733 of file pgItem.cxx.

References get_notify(), and has_notify().

Referenced by background_candidate(), PGMouseWatcherRegion::candidate(), and PGEntry::candidate().

◆ clear_frame()

void PGItem::clear_frame ( )

inline

Removes the bounding rectangle from the item.

It will no longer be possible to position the mouse within the item; see set_frame().

Definition at line 126 of file pgItem.I.

◆ clear_state_def()

void PGItem::clear_state_def ( int state )

Resets the NodePath assigned to the indicated state to its initial default, with only a frame representation if appropriate.

Definition at line 944 of file pgItem.cxx.

Referenced by PGWaitBar::setup(), PGScrollFrame::setup(), PGVirtualFrame::setup(), PGButton::setup(), PGSliderBar::setup_scroll_bar(), and PGSliderBar::setup_slider().

◆ enter_region()

void PGItem::enter_region ( const MouseWatcherParameter & param )

virtual

This is a callback hook function, called whenever the mouse enters the region.

The mouse is only considered to be "entered" in one region at a time; in the case of nested regions, it exits the outer region before entering the inner one.

Reimplemented in PGButton.

Definition at line 521 of file pgItem.cxx.

References get_enter_event().

Referenced by PGMouseWatcherRegion::enter_region(), and PGButton::enter_region().

◆ exit_region()

void PGItem::exit_region ( const MouseWatcherParameter & param )

virtual

This is a callback hook function, called whenever the mouse exits the region.

The mouse is only considered to be "entered" in one region at a time; in the case of nested regions, it exits the outer region before entering the inner one.

Reimplemented in PGButton.

Definition at line 545 of file pgItem.cxx.

References get_exit_event().

Referenced by PGMouseWatcherRegion::exit_region(), and PGButton::exit_region().

◆ focus_in()

void PGItem::focus_in ( )

virtual

This is a callback hook function, called whenever the widget gets the keyboard focus.

Definition at line 615 of file pgItem.cxx.

References get_focus_in_event().

Referenced by set_focus().

◆ focus_out()

void PGItem::focus_out ( )

virtual

This is a callback hook function, called whenever the widget loses the keyboard focus.

Definition at line 636 of file pgItem.cxx.

References get_focus_out_event().

Referenced by set_focus().

◆ get_active()

bool PGItem::get_active ( ) const

inline

Returns whether the PGItem is currently active for mouse events.

See set_active().

Definition at line 160 of file pgItem.I.

Referenced by PGEntry::candidate(), PGButton::enter_region(), PGButton::exit_region(), PGEntry::keystroke(), PGButton::press(), PGSliderBar::press(), PGEntry::press(), PGButton::release(), PGButton::set_active(), and set_focus().

◆ get_background_focus()

bool PGItem::get_background_focus ( ) const

inline

Returns whether background_focus is currently enabled.

See set_background_focus().

Definition at line 180 of file pgItem.I.

Referenced by PGEntry::press(), and set_background_focus().

◆ get_enter_event()

std::string PGItem::get_enter_event ( ) const

inline

Returns the event name that will be thrown when the item is active and the mouse enters its frame, but not any nested frames.

Definition at line 349 of file pgItem.I.

References get_enter_prefix(), and get_id().

Referenced by enter_region().

◆ get_enter_prefix()

std::string PGItem::get_enter_prefix ( )

inlinestatic

Returns the prefix that is used to define the enter event for all PGItems.

The enter event is the concatenation of this string followed by get_id().

Definition at line 248 of file pgItem.I.

Referenced by get_enter_event().

◆ get_exit_event()

std::string PGItem::get_exit_event ( ) const

inline

Returns the event name that will be thrown when the item is active and the mouse exits its frame, or enters a nested frame.

Definition at line 359 of file pgItem.I.

References get_exit_prefix(), and get_id().

Referenced by exit_region().

◆ get_exit_prefix()

std::string PGItem::get_exit_prefix ( )

inlinestatic

Returns the prefix that is used to define the exit event for all PGItems.

The exit event is the concatenation of this string followed by get_id().

Definition at line 257 of file pgItem.I.

Referenced by get_exit_event().

◆ get_focus()

bool PGItem::get_focus ( ) const

inline

Returns whether the PGItem currently has focus for keyboard events.

See set_focus().

Definition at line 170 of file pgItem.I.

Referenced by background_candidate(), background_keystroke(), background_press(), background_release(), PGEntry::press(), set_active(), and set_focus().

◆ get_focus_in_event()

std::string PGItem::get_focus_in_event ( ) const

inline

Returns the event name that will be thrown when the item gets the keyboard focus.

Definition at line 393 of file pgItem.I.

References get_focus_in_prefix(), and get_id().

Referenced by focus_in().

◆ get_focus_in_prefix()

std::string PGItem::get_focus_in_prefix ( )

inlinestatic

Returns the prefix that is used to define the focus_in event for all PGItems.

The focus_in event is the concatenation of this string followed by get_id().

Unlike most item events, this event is thrown with no parameters.

Definition at line 288 of file pgItem.I.

Referenced by get_focus_in_event().

◆ get_focus_item()

PGItem * PGItem::get_focus_item ( )

inlinestatic

Returns the one PGItem in the world that currently has keyboard focus, if any, or NULL if no item has keyboard focus.

Use PGItem::set_focus() to activate or deactivate keyboard focus on a particular item.

Definition at line 467 of file pgItem.I.

◆ get_focus_out_event()

std::string PGItem::get_focus_out_event ( ) const

inline

Returns the event name that will be thrown when the item loses the keyboard focus.

Definition at line 403 of file pgItem.I.

References get_focus_out_prefix(), and get_id().

Referenced by focus_out().

◆ get_focus_out_prefix()

std::string PGItem::get_focus_out_prefix ( )

inlinestatic

Returns the prefix that is used to define the focus_out event for all PGItems.

The focus_out event is the concatenation of this string followed by get_id().

Unlike most item events, this event is thrown with no parameters.

Definition at line 300 of file pgItem.I.

Referenced by get_focus_out_event().

◆ get_frame()

const LVecBase4 & PGItem::get_frame ( ) const

inline

Returns the bounding rectangle of the item.

See set_frame(). It is an error to call this if has_frame() returns false.

Definition at line 106 of file pgItem.I.

Referenced by PGVirtualFrame::get_clip_frame(), PGSliderBar::recompute(), PGScrollFrame::remanage(), and PGSliderBar::remanage().

◆ get_frame_inv_xform()

LMatrix4 PGItem::get_frame_inv_xform ( ) const

inline

Returns the inverse of the frame transform matrix.

Definition at line 475 of file pgItem.I.

◆ get_frame_style()

PGFrameStyle PGItem::get_frame_style ( int state )

Returns the kind of frame that will be drawn behind the item when it is in the indicated state.

Definition at line 979 of file pgItem.cxx.

Referenced by PGScrollFrame::remanage().

◆ get_id()

const std::string & PGItem::get_id ( ) const

inline

Returns the unique ID assigned to this PGItem.

This will be assigned to the region created with the MouseWatcher, and will thus be used to generate event names.

Definition at line 224 of file pgItem.I.

Referenced by PGEntry::get_accept_event(), PGEntry::get_accept_failed_event(), PGSliderBar::get_adjust_event(), PGButton::get_click_event(), PGEntry::get_cursormove_event(), get_enter_event(), PGEntry::get_erase_event(), get_exit_event(), get_focus_in_event(), get_focus_out_event(), get_keystroke_event(), PGEntry::get_overflow_event(), get_press_event(), get_release_event(), get_repeat_event(), PGEntry::get_type_event(), get_within_event(), and get_without_event().

◆ get_keystroke_event()

std::string PGItem::get_keystroke_event ( ) const

inline

Returns the event name that will be thrown when the item is active and any key is pressed by the user.

Definition at line 446 of file pgItem.I.

References get_id(), and get_keystroke_prefix().

Referenced by keystroke().

◆ get_keystroke_prefix()

std::string PGItem::get_keystroke_prefix ( )

inlinestatic

Returns the prefix that is used to define the keystroke event for all PGItems.

The keystroke event is the concatenation of this string followed by a hyphen and get_id().

Definition at line 340 of file pgItem.I.

Referenced by get_keystroke_event().

◆ get_notify()

PGItemNotify * PGItem::get_notify ( ) const

inline

Returns the object which will be notified when the PGItem changes, if any.

Returns NULL if there is no such object configured.

Definition at line 69 of file pgItem.I.

Referenced by candidate(), PGButton::get_notify(), and PGSliderBar::get_notify().

◆ get_press_event()

std::string PGItem::get_press_event ( const ButtonHandle & button ) const

inline

Returns the event name that will be thrown when the item is active and the indicated mouse or keyboard button is depressed while the mouse is within the frame.

Definition at line 414 of file pgItem.I.

References get_id(), ButtonHandle::get_name, and get_press_prefix().

Referenced by press().

◆ get_press_prefix()

std::string PGItem::get_press_prefix ( )

inlinestatic

Returns the prefix that is used to define the press event for all PGItems.

The press event is the concatenation of this string followed by a button name, followed by a hyphen and get_id().

Definition at line 310 of file pgItem.I.

Referenced by get_press_event().

◆ get_region()

PGMouseWatcherRegion * PGItem::get_region ( ) const

inline

Returns the MouseWatcherRegion associated with this item.

Every PGItem has a MouseWatcherRegion associated with it, that is created when the PGItem is created; it does not change during the lifetime of the PGItem. Even items that do not have a frame have an associated MouseWatcherRegion, although it will not be used in this case.

Definition at line 31 of file pgItem.I.

◆ get_release_event()

std::string PGItem::get_release_event ( const ButtonHandle & button ) const

inline

Returns the event name that will be thrown when the item is active and the indicated mouse or keyboard button, formerly clicked down is within the frame, is released.

Definition at line 436 of file pgItem.I.

References get_id(), ButtonHandle::get_name, and get_release_prefix().

Referenced by release().

◆ get_release_prefix()

std::string PGItem::get_release_prefix ( )

inlinestatic

Returns the prefix that is used to define the release event for all PGItems.

The release event is the concatenation of this string followed by a button name, followed by a hyphen and get_id().

Definition at line 330 of file pgItem.I.

Referenced by get_release_event().

◆ get_repeat_event()

std::string PGItem::get_repeat_event ( const ButtonHandle & button ) const

inline

Returns the event name that will be thrown when the item is active and the indicated mouse or keyboard button is continuously held down while the mouse is within the frame.

Definition at line 425 of file pgItem.I.

References get_id(), ButtonHandle::get_name, and get_repeat_prefix().

Referenced by press().

◆ get_repeat_prefix()

std::string PGItem::get_repeat_prefix ( )

inlinestatic

Returns the prefix that is used to define the repeat event for all PGItems.

The repeat event is the concatenation of this string followed by a button name, followed by a hyphen and get_id().

Definition at line 320 of file pgItem.I.

Referenced by get_repeat_event().

◆ get_state()

int PGItem::get_state ( ) const

inline

Returns the "state" of this particular PGItem.

See set_state().

Definition at line 150 of file pgItem.I.

Referenced by PGScrollFrame::remanage().

◆ get_suppress_flags()

int PGItem::get_suppress_flags ( ) const

inline

This is just an interface to get the suppress flags on the underlying MouseWatcherRegion.

See MouseWatcherRegion::get_suppress_flags().

Definition at line 200 of file pgItem.I.

◆ get_text_node()

TextNode * PGItem::get_text_node ( )

static

Returns the TextNode object that will be used by all PGItems to generate default labels given a string.

This can be loaded with the default font, etc.

Definition at line 1055 of file pgItem.cxx.

Referenced by PGEntry::get_text_def(), and PGButton::setup().

◆ get_within_event()

std::string PGItem::get_within_event ( ) const

inline

Returns the event name that will be thrown when the item is active and the mouse moves within the boundaries of the frame.

This is different from the enter_event in that the mouse is considered within the frame even if it is also within a nested frame.

Definition at line 371 of file pgItem.I.

References get_id(), and get_within_prefix().

Referenced by within_region().

◆ get_within_prefix()

std::string PGItem::get_within_prefix ( )

inlinestatic

Returns the prefix that is used to define the within event for all PGItems.

The within event is the concatenation of this string followed by get_id().

Definition at line 266 of file pgItem.I.

Referenced by get_within_event().

◆ get_without_event()

std::string PGItem::get_without_event ( ) const

inline

Returns the event name that will be thrown when the item is active and the mouse moves completely outside the boundaries of the frame.

This is different from the exit_event in that the mouse is considered within the frame even if it is also within a nested frame.

Definition at line 383 of file pgItem.I.

References get_id(), and get_without_prefix().

Referenced by without_region().

◆ get_without_prefix()

std::string PGItem::get_without_prefix ( )

inlinestatic

Returns the prefix that is used to define the without event for all PGItems.

The without event is the concatenation of this string followed by get_id().

Definition at line 276 of file pgItem.I.

Referenced by get_without_event().

◆ has_frame()

bool PGItem::has_frame ( ) const

inline

Returns true if the item has a bounding rectangle; see set_frame().

Definition at line 116 of file pgItem.I.

Referenced by PGSliderBar::recompute().

◆ has_notify()

bool PGItem::has_notify ( ) const

inline

Returns true if there is an object configured to be notified when the PGItem changes, false otherwise.

Definition at line 59 of file pgItem.I.

Referenced by candidate().

◆ has_state_def()

bool PGItem::has_state_def ( int state ) const

Returns true if get_state_def() has ever been called for the indicated state (thus defining a render subgraph for this state index), false otherwise.

Definition at line 931 of file pgItem.cxx.

◆ instance_to_state_def()

NodePath PGItem::instance_to_state_def	(	int	state,
		const NodePath &	path
	)

Parents an instance of the bottom node of the indicated NodePath to the indicated state index.

Definition at line 962 of file pgItem.cxx.

References NodePath::instance_to(), and NodePath::is_empty().

Referenced by PGButton::setup().

◆ keystroke()

void PGItem::keystroke	(	const MouseWatcherParameter &	param,
		bool	background
	)

virtual

This is a callback hook function, called whenever the user presses a key.

Reimplemented in PGEntry.

Definition at line 709 of file pgItem.cxx.

References get_keystroke_event().

Referenced by background_keystroke(), PGMouseWatcherRegion::keystroke(), and PGEntry::keystroke().

◆ move()

void PGItem::move ( const MouseWatcherParameter & param )

virtual

This is a callback hook function, called whenever a mouse is moved while within the region.

Reimplemented in PGSliderBar.

Definition at line 753 of file pgItem.cxx.

Referenced by PGMouseWatcherRegion::move().

◆ press()

void PGItem::press	(	const MouseWatcherParameter &	param,
		bool	background
	)

virtual

This is a callback hook function, called whenever a mouse or keyboard button is depressed while the mouse is within the region.

Reimplemented in PGEntry, PGSliderBar, and PGButton.

Definition at line 657 of file pgItem.cxx.

References MouseWatcherParameter::get_button(), get_press_event(), get_repeat_event(), and MouseWatcherParameter::is_keyrepeat().

Referenced by background_press(), PGMouseWatcherRegion::press(), PGButton::press(), and PGEntry::press().

◆ release()

void PGItem::release	(	const MouseWatcherParameter &	param,
		bool	background
	)

virtual

This is a callback hook function, called whenever a mouse or keyboard button previously depressed with press() is released.

Reimplemented in PGSliderBar, and PGButton.

Definition at line 686 of file pgItem.cxx.

References MouseWatcherParameter::get_button(), and get_release_event().

Referenced by background_release(), PGMouseWatcherRegion::release(), PGButton::release(), and PGSliderBar::release().

◆ set_active()

void PGItem::set_active ( bool active )

virtual

Sets whether the PGItem is active for mouse watching.

This is not necessarily related to the active/inactive appearance of the item, which is controlled by set_state(), but it does affect whether it responds to mouse events.

Reimplemented in PGEntry, PGSliderBar, and PGButton.

Definition at line 828 of file pgItem.cxx.

References get_focus(), and set_focus().

Referenced by PGButton::set_active(), PGSliderBar::set_active(), and PGEntry::set_active().

◆ set_background_focus()

void PGItem::set_background_focus ( bool focus )

Sets the background_focus flag for this item.

When background_focus is enabled, the item will receive keypress events even if it is not in focus; in fact, even if it is not onscreen. Unlike normal focus, many items may have background_focus simultaneously.

Definition at line 893 of file pgItem.cxx.

References get_background_focus().

◆ set_focus()

void PGItem::set_focus ( bool focus )

virtual

Sets whether the PGItem currently has keyboard focus.

This simply means that the item may respond to keyboard events as well as to mouse events; precisely what this means is up to the individual item.

Only one PGItem in the world is allowed to have focus at any given time. Setting the focus on any other item automatically disables the focus from the previous item.

Reimplemented in PGEntry.

Definition at line 851 of file pgItem.cxx.

References focus_in(), focus_out(), get_active(), get_focus(), and set_focus().

Referenced by set_active(), PGEntry::set_focus(), and set_focus().

◆ set_frame() [1/2]

void PGItem::set_frame	(	PN_stdfloat	left,
		PN_stdfloat	right,
		PN_stdfloat	bottom,
		PN_stdfloat	top
	)

inline

Sets the bounding rectangle of the item, in local coordinates.

This is the region on screen within which the mouse will be considered to be within the item. Normally, it should correspond to the bounding rectangle of the visible geometry of the item.

Definition at line 81 of file pgItem.I.

Referenced by PGWaitBar::setup(), PGScrollFrame::setup(), PGVirtualFrame::setup(), PGButton::setup(), PGSliderBar::setup_scroll_bar(), and PGSliderBar::setup_slider().

◆ set_frame() [2/2]

void PGItem::set_frame ( const LVecBase4 & frame )

inline

Sets the bounding rectangle of the item, in local coordinates.

This is the region on screen within which the mouse will be considered to be within the item. Normally, it should correspond to the bounding rectangle of the visible geometry of the item.

Definition at line 92 of file pgItem.I.

◆ set_frame_style()

void PGItem::set_frame_style	(	int	state,
		const PGFrameStyle &	style
	)

Changes the kind of frame that will be drawn behind the item when it is in the indicated state.

Definition at line 992 of file pgItem.cxx.

Referenced by PGWaitBar::setup(), PGScrollFrame::setup(), PGVirtualFrame::setup(), PGButton::setup(), PGSliderBar::setup_scroll_bar(), and PGSliderBar::setup_slider().

◆ set_id()

void PGItem::set_id ( const std::string & id )

inline

Set the unique ID assigned to this PGItem.

It is the user's responsibility to ensure that this ID is unique.

Normally, this should not need to be called, as the PGItem will assign itself an ID when it is created, but this function allows the user to decide to redefine the ID to be something possibly more meaningful.

Definition at line 238 of file pgItem.I.

◆ set_notify()

void PGItem::set_notify ( PGItemNotify * notify )

inline

Sets the object which will be notified when the PGItem changes.

Set this to NULL to disable this effect. The PGItem does not retain ownership of the pointer; it is your responsibility to ensure that the notify object does not destruct.

Definition at line 43 of file pgItem.I.

Referenced by PGButton::set_notify(), and PGSliderBar::set_notify().

◆ set_state()

void PGItem::set_state ( int state )

inline

Sets the "state" of this particular PGItem.

The PGItem node will render as if it were the subgraph assigned to the corresponding index via set_state_def().

Definition at line 141 of file pgItem.I.

Referenced by PGButton::enter_region(), PGButton::exit_region(), PGButton::press(), PGButton::release(), PGButton::set_active(), PGWaitBar::setup(), PGScrollFrame::setup(), PGVirtualFrame::setup(), PGSliderBar::setup_scroll_bar(), and PGSliderBar::setup_slider().

◆ set_suppress_flags()

void PGItem::set_suppress_flags ( int suppress_flags )

inline

This is just an interface to set the suppress flags on the underlying MouseWatcherRegion.

See MouseWatcherRegion::set_suppress_flags().

Definition at line 190 of file pgItem.I.

◆ set_text_node()

void PGItem::set_text_node ( TextNode * node )

inlinestatic

Changes the TextNode object that will be used by all PGItems to generate default labels given a string.

This can be loaded with the default font, etc.

Definition at line 457 of file pgItem.I.

◆ within_region()

void PGItem::within_region ( const MouseWatcherParameter & param )

virtual

This is a callback hook function, called whenever the mouse moves within the boundaries of the region, even if it is also within the boundaries of a nested region.

This is different from "enter", which is only called whenever the mouse is within only that region.

Definition at line 571 of file pgItem.cxx.

References get_within_event().

Referenced by PGMouseWatcherRegion::within_region().

◆ without_region()

void PGItem::without_region ( const MouseWatcherParameter & param )

virtual

This is a callback hook function, called whenever the mouse moves completely outside the boundaries of the region.

See within().

Definition at line 593 of file pgItem.cxx.

References get_without_event().

Referenced by PGMouseWatcherRegion::without_region().

Member Data Documentation

◆ get_num_state_defs

int PGItem::get_num_state_defs

Returns one more than the highest-numbered state def that was ever assigned to the PGItem.

The complete set of state defs assigned may then be retrieved by indexing from 0 to (get_num_state_defs() - 1).

This is only an upper limit on the actual number of state defs, since there may be holes in the list.

Definition at line 135 of file pgItem.h.

◆ get_state_def

NodePath & PGItem::get_state_def

inline

Returns the Node that is the root of the subgraph that will be drawn when the PGItem is in the indicated state.

The first time this is called for a particular state index, it may create the Node.

Definition at line 135 of file pgItem.h.

The documentation for this class was generated from the following files:

panda/src/pgui/pgItem.h
panda/src/pgui/pgItem.cxx
panda/src/pgui/pgItem.I

Public Member Functions

Static Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ background_candidate()

◆ background_keystroke()

◆ background_press()

◆ background_release()

◆ candidate()

◆ clear_frame()

◆ clear_state_def()

◆ enter_region()

◆ exit_region()

◆ focus_in()

◆ focus_out()

◆ get_active()

◆ get_background_focus()

◆ get_enter_event()

◆ get_enter_prefix()

◆ get_exit_event()

◆ get_exit_prefix()

◆ get_focus()

◆ get_focus_in_event()

◆ get_focus_in_prefix()

◆ get_focus_item()

◆ get_focus_out_event()

◆ get_focus_out_prefix()

◆ get_frame()

◆ get_frame_inv_xform()

◆ get_frame_style()

◆ get_id()

◆ get_keystroke_event()

◆ get_keystroke_prefix()

◆ get_notify()

◆ get_press_event()

◆ get_press_prefix()

◆ get_region()

◆ get_release_event()

◆ get_release_prefix()

◆ get_repeat_event()

◆ get_repeat_prefix()

◆ get_state()

◆ get_suppress_flags()

◆ get_text_node()

◆ get_within_event()

◆ get_within_prefix()

◆ get_without_event()

◆ get_without_prefix()

◆ has_frame()

◆ has_notify()

◆ has_state_def()

◆ instance_to_state_def()

◆ keystroke()

◆ move()

◆ press()

◆ release()

◆ set_active()

◆ set_background_focus()

◆ set_focus()

◆ set_frame() [1/2]

◆ set_frame() [2/2]

◆ set_frame_style()

◆ set_id()

◆ set_notify()

◆ set_state()

◆ set_suppress_flags()

◆ set_text_node()

◆ within_region()

◆ without_region()

Member Data Documentation

◆ get_num_state_defs

◆ get_state_def
